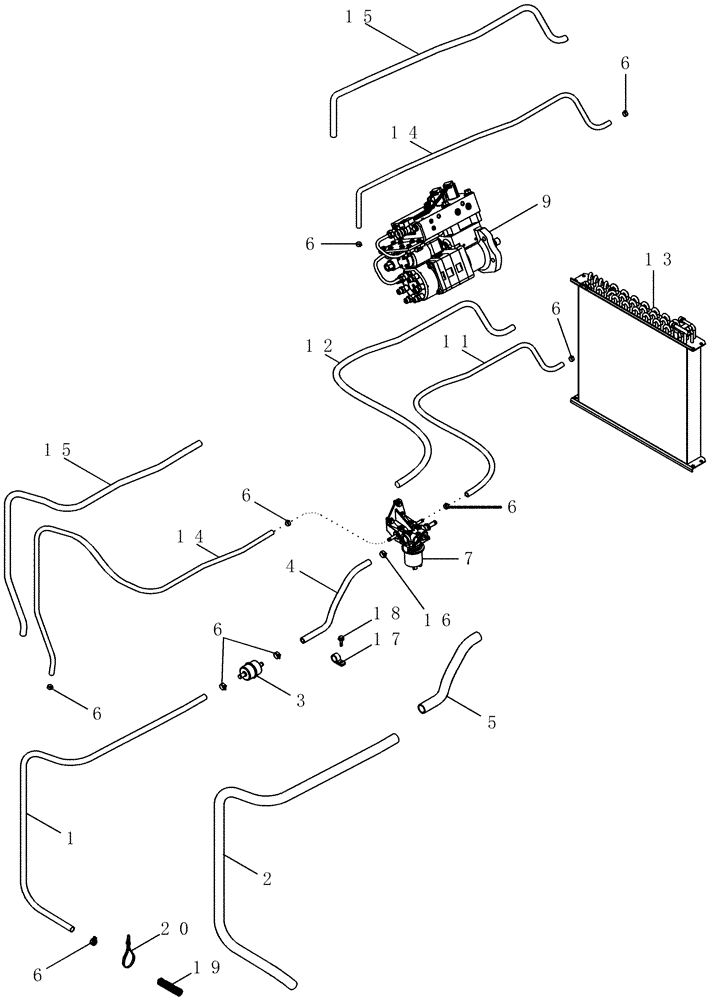

Запчасти Case IH MX255 (03-23) - FUEL LINES WITH INLINE FILTER, MX255 AND MX285 (03) - FUEL SYSTEM

1

87404609

HOSE

1380 mm (54-11/32 in)

1шт.

2

87404610

CONDUIT

1310 mm (51-9/16 in)

1шт.

3

194199A1

FUEL FILTER

1шт.

4

87404615

HOSE

735 mm (28-15/16 in)

1шт.

5

87404616

CONDUIT

665 mm (26-3/16 in)

1шт.

6

1348264C1

HOSE CLAMP

3/8 ID

6шт.

7

REF

INSTRUCTION

Pump

1шт.

See Figure 03-05

1шт.

9

J4076442

FUEL INJECTION PUMP

1шт.

See Figure 03-08

1шт.

9

JR4076442

REMAN-INJECTION PUMP

MX255, MX285

1шт.

9

JC4076442

CORE-INJECTION PUMP

Return Part Number

1шт.

9

A78006

KIT

Kit -- Instructions 6-10880 and Electrical Connector J164187

1шт.

11

292457A2

FUEL HOSE,9.53 mm ID x 1415.00 mm, SAE 30R7

Cut From 284736A2

1шт.

12

291507A2

CONDUIT

1345 mm (53 in), Cut From 291262A2

1шт.

13

REF

INSTRUCTION

Cooler

1шт.

See Figure 09-42

1шт.

14

327835A1

FUEL HOSE,9.53 mm ID x 1865.00 mm, SAE 30R7

Cut From 284736A2

2шт.

15

327836A1

FUEL HOSE,16.64 mm ID x 1795.00 mm

Cut From 291262A2

2шт.

16

196252A1

CLAMP

4шт.

17

229357A1

CLAMP

1шт.

18

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

19

87435416

SPRING

Fuel Hose Guard, Start Serial: JAZ129998

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP, Start Serial: JAZ129998

1шт.
