Запчасти Case IH MX255 (02-45) - GASKET KIT - VALVE GRIND, MX255 AND MX285 (02) - ENGINE

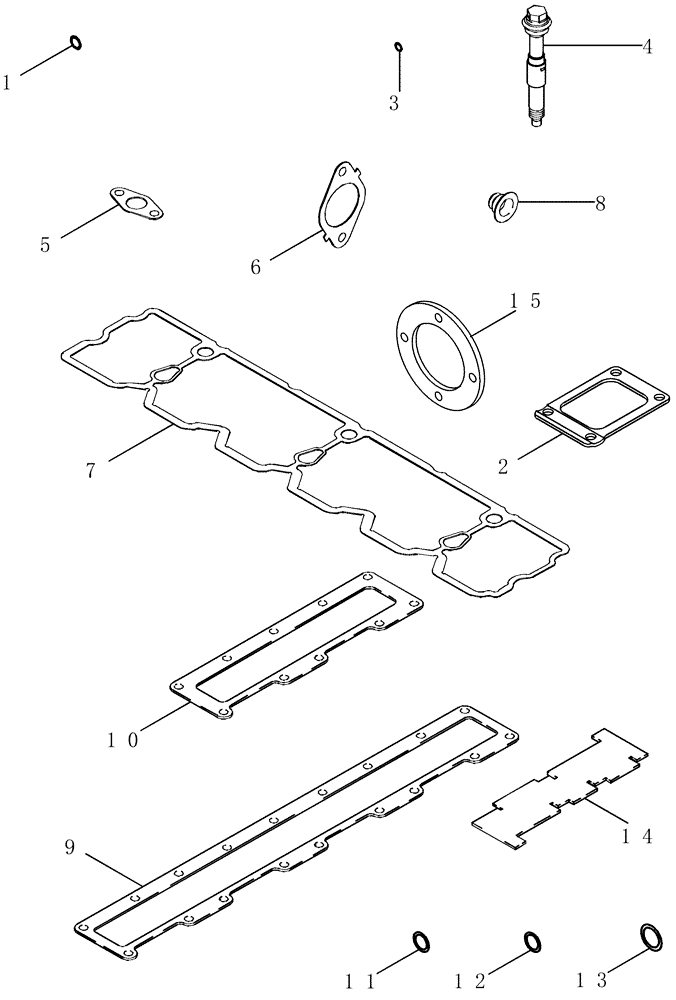

Схема запчастей Case IH MX255 - (02-45) - GASKET KIT - VALVE GRIND, MX255 AND MX285 (02) - ENGINE
10
8
3
12
4
9
1
6
14
13
11
15
2
5
7

Артикул

Название

Примечание

Количество

A78018

GASKET KIT

Inc. 1 - 14

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

Injector

6шт.

See Figure 03-06

1шт.

2

J919369

GASKET,0.5mm Thk

Mounting, Turbocharger

1шт.

See Figure 02-18

1шт.

3

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm, Nozzle

6шт.

See Figure 03-15

1шт.

4

J990876

ISOLATOR

Valve Cover Screws

5шт.

5

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

See Figure 02-18

1шт.

6

J937479

MANIFOLD GASKET

Exhaust, Serial Range: -ZARZ06701

6шт.

6

84368103

MANIFOLD GASKET,1.08mm Thk

, Start Serial: ZARZ06702

6шт.

See Figure 02-16

1шт.

7

J939284

GASKET

Valve Cover

1шт.

See Figure 02-28

1шт.

8

87352235

SEAL

Intake Valve

24шт.

See Figure 02-30

1шт.

9

J944646

MANIFOLD GASKET

Intake

1шт.

See Figure 02-16

1шт.

10

J944647

GASKET

Connector Mounting

1шт.

See Figure 02-16

1шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

See Figure 03-13

1шт.

13

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

2шт.

14

J823921

GAUGE

Length

1шт.

15

J917892

GASKET,0.79mm Thk

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

Выбрано товаров: 27
