(05.100.03[01]) - FILTERS, MX255

Запчасти Case IH MX255 (05.100.03[01]) - FILTERS, MX255 (18) - MISCELLANEOUS

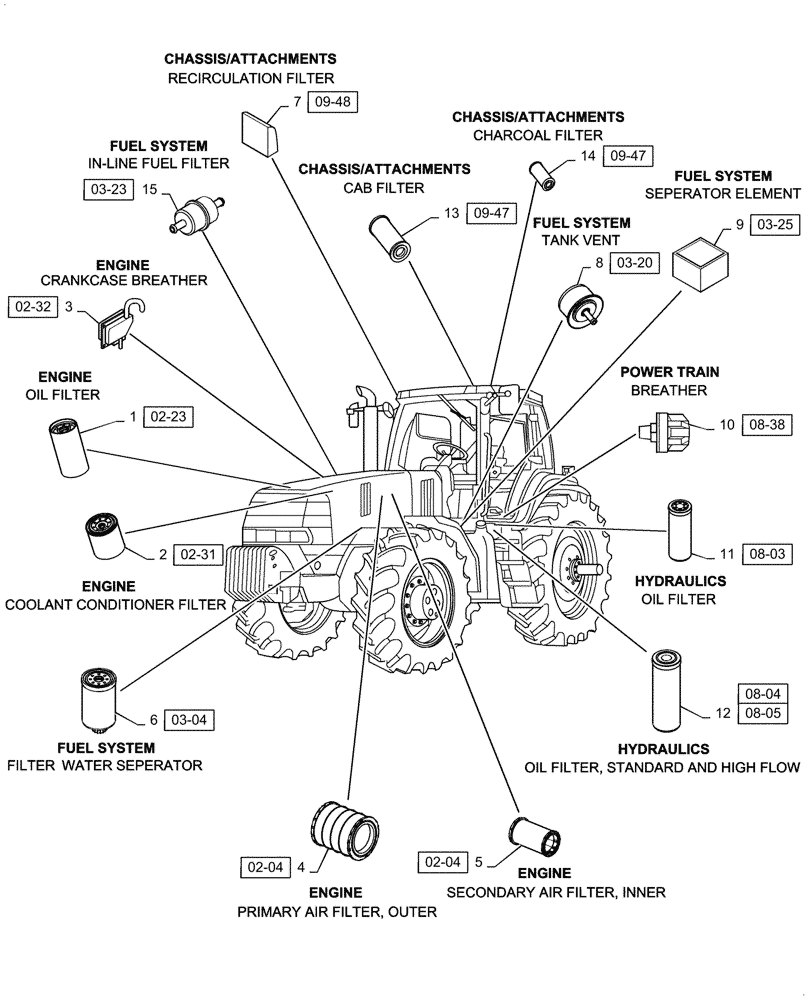

Схема запчастей Case IH MX255 - (05.100.03[01]) - FILTERS, MX255 (18) - MISCELLANEOUS
03-20
1
5
14
13
11
6
12
9
3
15
7
4
10
2
8
03-23
08-04
02-32
02-23
09-47
09-47
02-31
08-03
08-05
03-25
09-48
03-04
02-04
02-04
08-38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J919562

ENGINE OIL FILTER

Spin-On

1шт.

2

J100304

FILTER

H20 Conditioning

1шт.

3

J937652

BREATHER

Crankcase

1шт.

4

294292A1

AIR CLEANER

Engine, Standard Duty

1шт.

4

367349A1

FILTER

Engine, Severe Duty

1шт.

5

294293A1

AIR FILTER

Engine, Standard Duty

1шт.

5

367350A1

AIR FILTER

Engine, Severe Duty

1шт.

6

J329289

FUEL FILTER

H20 Seperator

1шт.

7

293615A1

FILTER

2шт.

8

316078A2

BREATHER

Fuel System

1шт.

9

336430A1

FUEL FILTER

Element

1шт.

10

1971726C1

BREATHER,1/4" - 18

Transmission

1шт.

11

402652A1

HYDRAULIC OIL FILTER

Charge

1шт.

12

277311A1

HYDRAULIC OIL FILTER

For Standard and High Flow

1шт.

13

259288A1

CAB FILTER

1шт.

14

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

15

194199A1

FUEL FILTER

In-line

1шт.
