(09-54) - HITCH - TOP LINK

Запчасти Case IH MX255 (09-54) - HITCH - TOP LINK (09) - CHASSIS/ATTACHMENTS

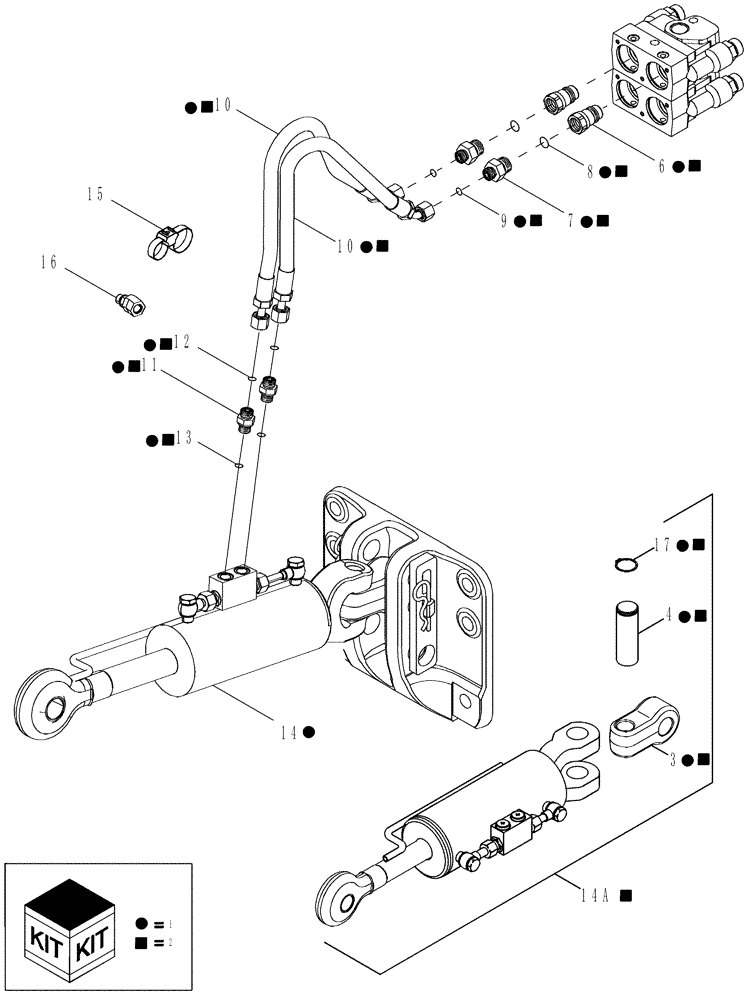

Схема запчастей Case IH MX255 - (09-54) - HITCH - TOP LINK (09) - CHASSIS/ATTACHMENTS
2
12
7
1
15
1
1
10
1
1
2
2
1
2
1
10
2
9
1
2
2
1
4
2
1
2
1
2
2
16
2
2
6
1
17
8
1
1
11
14a
13
3
14
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87313709

TOP LINK

KIT, Ball, Inc. 6 -18

1шт.

2

87314209

TOP LINK

KIT, Ball, Inc. 6 - 14A, 17

1шт.

3

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

4

NSS

NOT SOLD SEPARAT

PIN

1шт.

5

5197835

SEALING RING

(Not Shown)

1шт.

6

1272399C2

QUICK MALE COUPLING

2шт.

7

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Inc. 8, 9

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

87441258

HOSE

705 mm (27-3/4 in)

2шт.

11

87434646

UNION,M16 x 11/16" ORFS

Inc. 12, 13

2шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

14

87542872

TOP LINK

Long, Used With Long Draft Arms, 1094 mm (43 in) Center To Center, Inc. 3, 4, 17

1шт.

14a

87453964

TOP LINK

Short, Used With Short Draft Arms, 970 mm (38 in) Center To Center, Inc. 3, 4, 17

1шт.

15

86991000

CLAMP

3шт.

16

87726025

ELBOW

Used With Power Beyond Option Only

1шт.

17

800-2128

SNAP RING,M28, Int

2шт.

18

47392864

DECAL

Hyd Top Link Cyl Position (Not Shown)

1шт.
