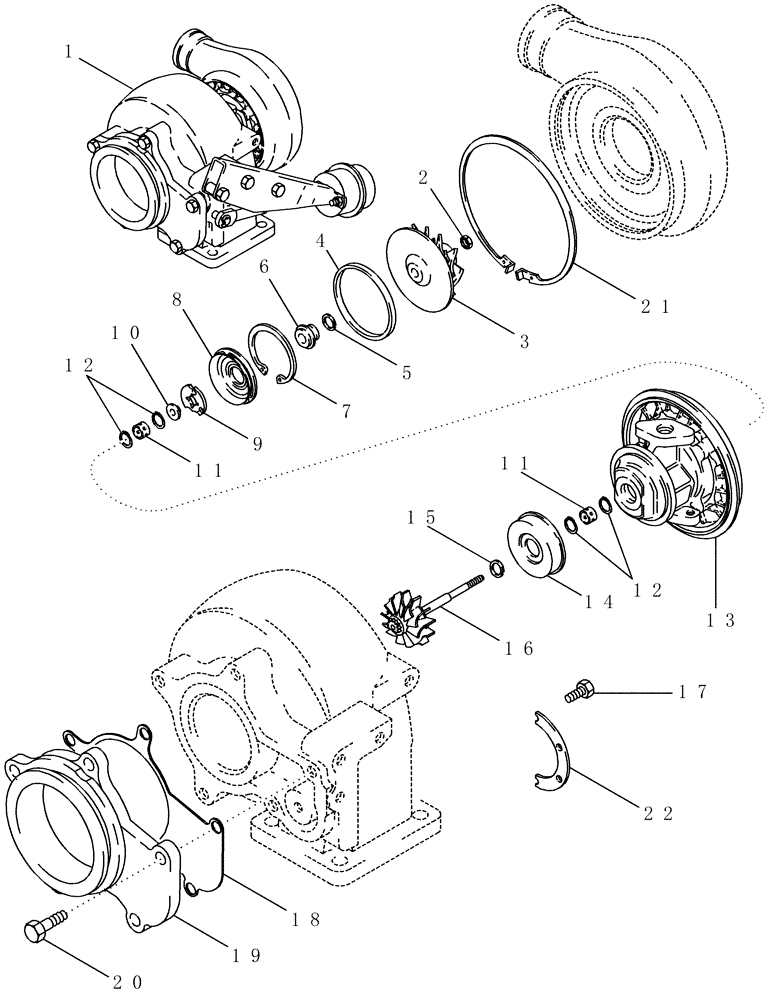

Запчасти Case IH MX255 (02-20) - TURBOCHARGER ASSEMBLY, MX255 AND MX285 (02) - ENGINE

J800426

SERVICE KIT

Turbocharger, Inc. J590348, J519807, J709861, 237-6005, Not Illustrated

1шт.

JR800426

REMAN-TURBOCHARGER

MX255, MX285

1шт.

JC590348

CORE-TURBOCHARGER

Return Part Number

1шт.

NSS

NOT SOLD SEPARAT

Turbocharger, Inc. 1 - 22, Also Inc. 1 - 15, See Figure 02-22

1шт.

1

J591196

CARTRIDGE

Center, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

1шт.

19

J537979

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
