Запчасти Case IH MX255 (08-22) - HITCH VALVE ASSEMBLY - TRANSMISSION BSN AJB0362561 (08) - HYDRAULICS

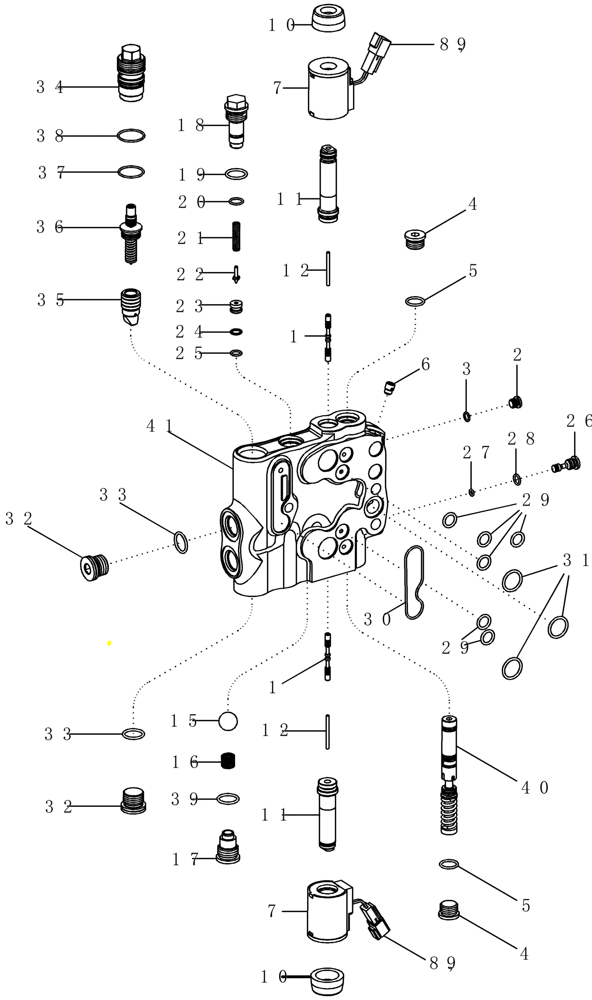

Схема запчастей Case IH MX255 - (08-22) - HITCH VALVE ASSEMBLY - TRANSMISSION BSN AJB0362561 (08) - HYDRAULICS
30
5
32
40
26
38
35
20
2
11
4
19
10
12
1
36
17
7
18
16
28
12
15
10
34
1
4
33
37
41
24
22
5
3
39
7
31
33
29
32
11
29
23
25
9
9
27
6
21

Артикул

Название

Примечание

Количество

412509A2

VALVE

Hitch, Inc. 1 - 41

1шт.

Order 412509A4 Valve

1шт.

412509A3

VALVE

Hitch, Inc. 1 - 41

1шт.

Transmission BSN AJB0303604

1шт.

412509A4

VALVE

Hitch, Inc. 1 - 41

1шт.

Transmission ASN AJB0303604

1шт.

1

188104A1

SPOOL

2шт.

2

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 3

1шт.

3

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

373758A1

VALVE

1шт.

243254A1

KIT

Inc. 7 - 9

2шт.

7

188105A1

SOLENOID

1шт.

8

225318C1

ELEC CONNECTOR,2 Pin

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

10

188106A1

NUT

2шт.

11

188117A1

CARTRIDGE,72.25mm OAL

2шт.

12

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

15

511-10200

BALL,20mm Dia

1шт.

87423671

SPRING KIT

Inc. 16, 17 and 39

1шт.

Used with 412509A3 and 412509A4 Valves

1шт.

16

188114A1

SPRING

1шт.

Used with 412509A2 Valve

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

Used with 412509A3 and 412509A4 Valves

1шт.

17

373760A1

PLUG

1шт.

Used with 412509A2 Valve

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

Used with 412509A3 and 412509A4 Valves

1шт.

373756A1

KIT

Inc. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Relief

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Spring

1шт.

22

NSS

NOT SOLD SEPARAT

Poppet

1шт.

23

NSS

NOT SOLD SEPARAT

Seat

1шт.

24

NSS

NOT SOLD SEPARAT

Ring

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

373761A1

PLUG

1шт.

27

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

29

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

6шт.

30

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

31

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

32

221579A1

PLUG,M22 x 1.5 ORB

Incl. 33

2шт.

33

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

243256A1

SERVICE KIT

Inc. 34 - 38

1шт.

Transmission BSN AJB0303604

1шт.

87430152

SERVICE KIT

Inc. 34, 36 - 38

1шт.

Transmission ASN AJB0303604

1шт.

34

NSS

NOT SOLD SEPARAT

Tube

1шт.

35

NSS

NOT SOLD SEPARAT

Poppet Valve

1шт.

36

NSS

NOT SOLD SEPARAT

Stem, Servo

1шт.

37

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

38

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

NSS

NOT SOLD SEPARAT

Spool

1шт.

41

NSS

NOT SOLD SEPARAT

Body

1шт.

373757A1

SEAL KIT

Seal, Inc. 3, 5, 19, 20, 24, 25, 27 - 31, 37, 38, 39

1шт.

Выбрано товаров: 60
