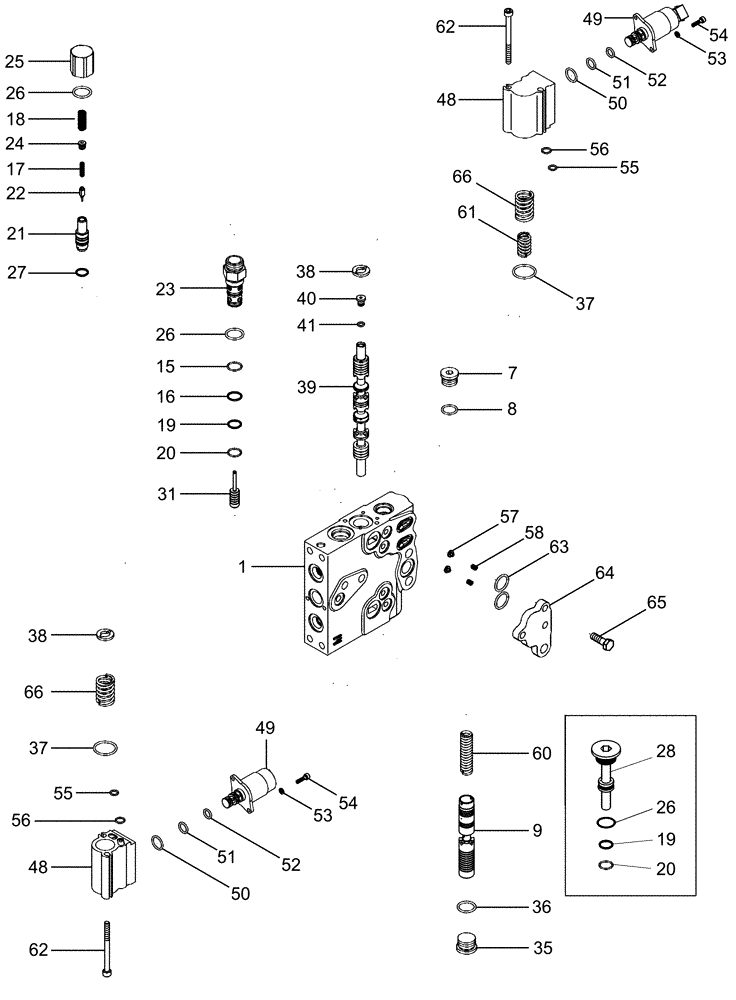

Запчасти Case IH MX255 (08-21) - REMOTE HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

447226A5

VALVE

Standard, Incl 1 - 62

1шт.

87384974R

REMAN-HYD VALVE

Standard, Incl 1 - 62. For Magnum III & TG Series II (215/245/275/305) & T8000 Only

1шт.

87384974C

CORE-VALVE HYD

Return Number

1шт.

447220A6

VALVE

Right Hand End, Incl 1 - 65

1шт.

447223A4

VALVE

Left Hand End Without Hitch, Incl 1 - 62

1шт.

447226A5

VALVE

Left Hand End With Hitch, Incl 1 - 62

1шт.

87384974R

REMAN-HYD VALVE

Left Hand End With Hitch, Incl 1 - 62. For Magnum III & TG Series II (215/245/275/305) & T8000 Only

1шт.

87384974C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

446403A1

SPOOL

1шт.

278550A2

CHECK VALVE

Incl 15 - 27

1шт.

278550A2R

REMAN-HYD VALVE

Incl 15 - 27

1шт.

278550A2C

CORE-VALVE HYD

Return Number

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Spring

1шт.

19

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

22

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

23

NSS

NOT SOLD SEPARAT

Body

1шт.

24

NSS

NOT SOLD SEPARAT

Plug

1шт.

25

NSS

NOT SOLD SEPARAT

Cap

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

27

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

28

284165A1

PLUG,25.4mm OD x 76.58mm L

Load Check Eliminator, If Used, Incl 19, 20, 26

1шт.

31

87546296

PISTON

1шт.

35

86625138

PLUG,7/18" - 14

Incl 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

38

436518A1

WASHER,11.45mm ID x 22.5mm OD x 3mm Thk

2шт.

437790A3

SPOOL

Incl 39 - 41, Serial Range: -AJB0302496

1шт.

Order 87416820 Spool and 87411129 Spring

1шт.

87416820

SPOOL

Incl 39 - 41, Start Serial: AJB0302496

1шт.

39

NSS

NOT SOLD SEPARAT

Spool

1шт.

40

86632547

PLUG,Hex, 5/16"-24 ORB

Incl 41

1шт.

41

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

42

301969A2

SPRING

, Serial Range: -AJB0302496

2шт.

43

301970A1

SPRING

, Serial Range: -AJB0302496

1шт.

367421A3

VALVE

Incl 48 - 56

2шт.

48

NSS

NOT SOLD SEPARAT

Body

1шт.

49

278506A2

SOLENOID VALVE

Incl 50 - 52

1шт.

372228A1

SEAL

Incl 50 - 52

1шт.

50

319721A1

O-RING,2.4mm Thk x 15.3mm ID

15,3 ID x 2,4

1шт.

51

319722A1

O-RING,2.4mm Thk x 10.3mm ID

10,3 ID x 2,4

1шт.

52

319723A1

O-RING,2.4mm Thk x 8.3mm ID

8,3 ID x 2,4

1шт.

53

892-11004

LOCK WASHER,M4

2шт.

54

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

2шт.

55

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

56

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

86994122

POPPET

Incl 57, 58

2шт.

57

446404A1

PIN,8.65mm OD x 5.46mm L

1шт.

58

446405A1

SPRING

1шт.

60

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

61

321689A1

SPRING

, Serial Range: -AJB0302496

1шт.

62

864-6075

HEX SOC SCREW,M6 x 75mm, Cl 8.8

2шт.

63

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

64

87408510

PLATE

1шт.

65

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

66

87706278

COMPRESSION SPRING

, Start Serial: AJB0302496

2шт.
