Запчасти Case IH MX255 (08-17) - PRIORITY AND REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS

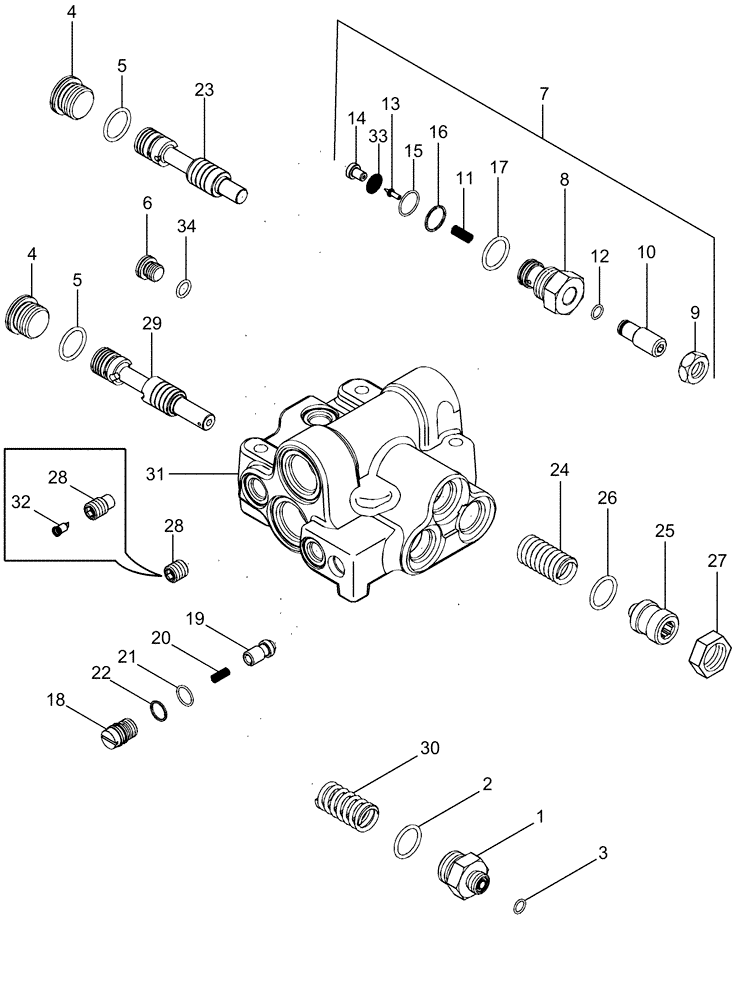

Схема запчастей Case IH MX255 - (08-17) - PRIORITY AND REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS
7
18
1
12
14
15
8
24
26
19
17
13
11
16
27
2
10
9
32
28
5
21
6
29
25
4
3
5
33
23
22
20
31
30
34
28
4

Артикул

Название

Примечание

Количество

404438A5

VALVE

Priority And Regulator, Inc. 1 - 34, Serial Range: -AJB0304793

1шт.

87451048

VALVE

Priority And Regulator, Inc. 1 - 31, 33, 34, Start Serial: AJB0304793

1шт.

1

313940A1

FITTING

Inc. 2, 3

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

221580A1

PLUG,M27 x 2 ORB

Includes 5

2шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 34

1шт.

7

315796A1

VALVE PRESSURE RELIE

Inc. 8 - 17, 33

1шт.

8

G108866

HOUSING,1-1/16" - 12

1шт.

9

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

10

G108867

PLUG

1шт.

11

130059A1

SPRING

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

G108556

VALVE POPPET

1шт.

14

196095A1

SEAT

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

1542563C1

KIT

Inc. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

1шт.

19

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

20

NSS

NOT SOLD SEPARAT

Spring

1шт.

21

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

22

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

23

404442A1

SPOOL

1шт.

24

448102A2

SPRING

1шт.

25

313941A1

PLUG

Inc. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

28

118923A2

PLUG

With Orifice, Inc. 32, Serial Range: -AJB0304793

1шт.

28

87427769

PLUG

, Start Serial: AJB0304793

1шт.

29

404443A2

SPOOL

, Serial Range: -AJB0304793

1шт.

29

87432325

SPOOL

, Start Serial: AJB0304793

1шт.

30

408447A1

COMPRESSION SPRING

1шт.

31

NSS

NOT SOLD SEPARAT

Body

1шт.

32

133519C1

SCREEN

, Serial Range: -AJB0304793

1шт.

33

196096A1

SCREEN

1шт.

34

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 39
