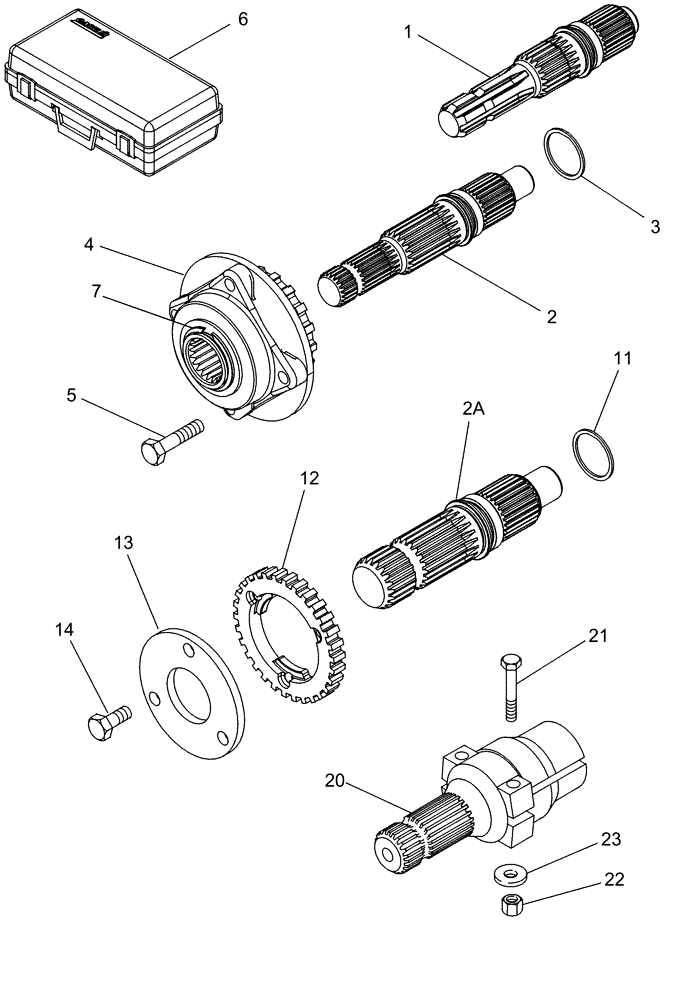

Запчасти Case IH MX255 (06-48) - POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT (06) - POWER TRAIN

1

226045A2

DRIVE SHAFT

RPM 540, 35 mm (1-3/8 in)

1шт.

For dual-speed interchangeable shaft PTO

1шт.

2

226042A2

DRIVE SHAFT

RPM 1000, 35 mm (1-3/8 in)

1шт.

For dual-speed interchangeable shaft PTO

1шт.

2a

226040A2

DRIVE SHAFT

RPM 1000, 45 mm (1-3/4 in)

1шт.

For dual-speed interchangeable shaft PTO

1шт.

3

341418A2

SEAL,40.87mm ID x 50mm OD x 3.53mm Thk

1шт.

For dual-speed interchangeable shaft PTO

1шт.

4

241387A5

HOUSING

Incl 7; Seal included with assy, cannot be purchased separately.

1шт.

For dual-speed interchangeable shaft PTO

1шт.

5

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

For dual-speed interchangeable shaft PTO

1шт.

6

87495161

BOX

1шт.

For dual-speed interchangeable shaft PTO

1шт.

7

375374R1

RING

1шт.

For dual-speed interchangeable shaft PTO

1шт.

11

341418A2

SEAL,40.87mm ID x 50mm OD x 3.53mm Thk

1шт.

For dual-speed interchangeable shaft PTO

1шт.

12

241385A3

GEAR

Inner

1шт.

For dual-speed interchangeable shaft PTO

1шт.

13

87656168

PLATE

Outer

1шт.

For dual-speed interchangeable shaft PTO

1шт.

14

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

For dual-speed interchangeable shaft PTO

1шт.

20

A151928

DRIVE SHAFT

Adapter, Single-Speed 1-3/4 in to 1-3/8 in

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

22

131-510

LOCK NUT,1/2"-13

2шт.

23

A30061

WASHER

2шт.
