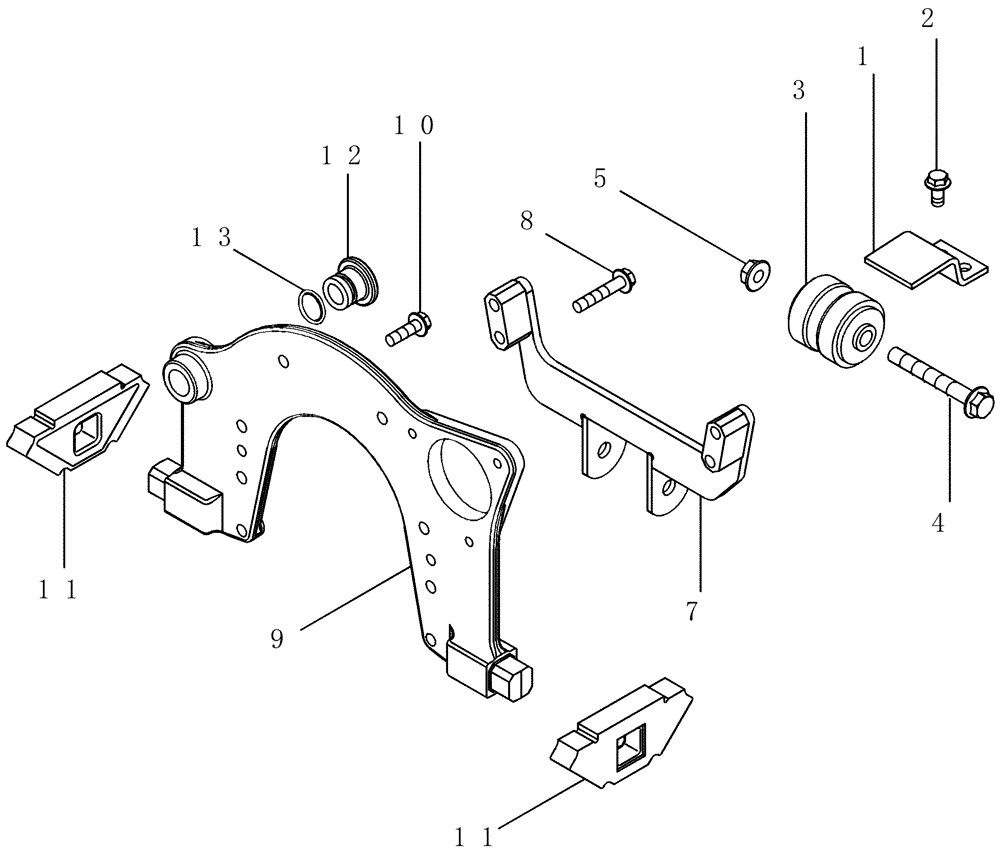

Запчасти Case IH MX255 (02-09) - ENGINE MOUNTING (02) - ENGINE

1

297527A1

CLAMP

1шт.

2

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

3

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

1шт.

4

854-16120

BOLT,Hvy Hex, M16 x 120mm, Cl 10.9

M16 x 120; 10.9

1шт.

5

825-2416

FLANGE NUT,M16 x 2, Flg, Cl 8

M16; 10.9

1шт.

7

252701A4

SUPPORT

1шт.

8

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

M12 x 65; 10.9

4шт.

9

250718A3

SUPPORT

1шт.

10

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

11

251991A1

SUPPORT

2шт.

12

J910248

PLUG

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.
