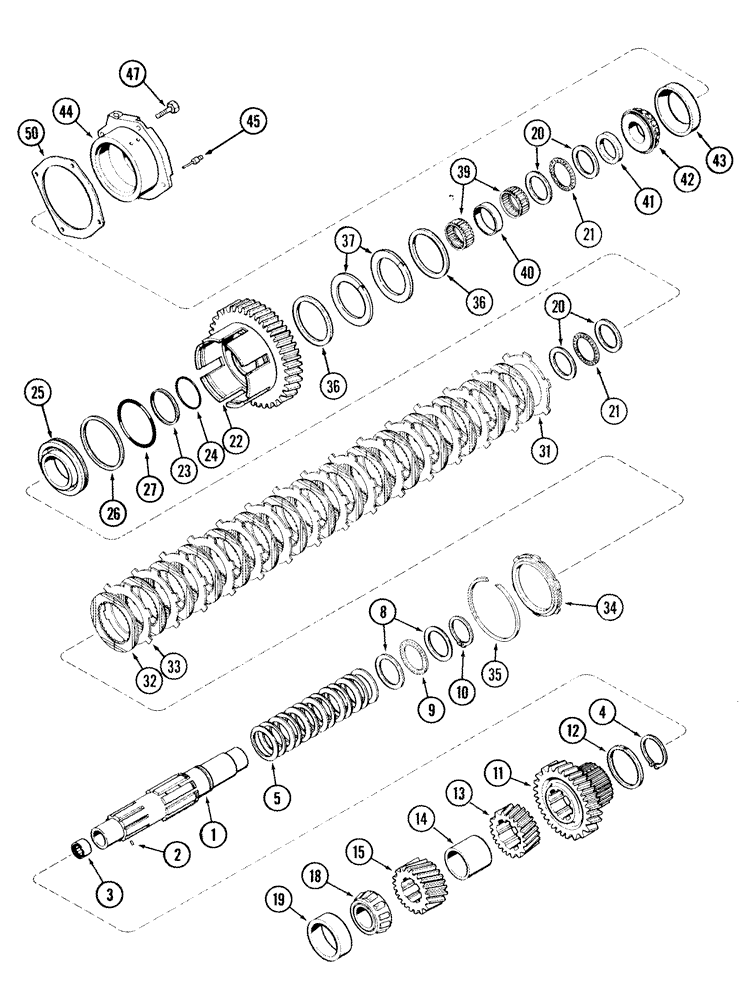

Запчасти Case IH MX255 (06-25) - RANGE TRANSMISSION - COUNTERSHAFT (06) - POWER TRAIN

1

1954059C2

SHAFT

Inc. 2

1шт.

2

38-3605

PIN,3/32" x 5/16", Coiled

3шт.

3

D63322

ROLLER BEARING,Needle, 31.75mm ID x 38.1mm OD x 19.05mm W

1шт.

4

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

1шт.

5

1286012C2

BELLEVILLE WASHER

13шт.

8

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

2шт.

9

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

1шт.

10

101-11250

SNAP RING,#250, 2.356, Ext

1шт.

11

1285978C1

PINION

39T

1шт.

12

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

1шт.

13

220057A1

GEAR

25T

1шт.

14

1286041C2

SPACER

1шт.

15

1285990C1

PINION

23T

1шт.

18

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

1шт.

MX210

1шт.

MX230

1шт.

18

253485A1

ROLLER BEARING,49.22mm ID x 44.39mm W

1шт.

MX255

1шт.

MX285

1шт.

19

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

1шт.

MX210

1шт.

MX230

1шт.

19

253486A1

BEARING CUP,103.2mm OD x 36.41mm W

1шт.

MX255

1шт.

MX285

1шт.

20

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

4шт.

21

K620185

THRUST BEARING

2шт.

22

297134A1

GEAR

54T

1шт.

23

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

25

242491A5

PISTON

1шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

31

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

1шт.

32

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

15шт.

33

92934C2

DISC

Separator

14шт.

34

1342645C3

CLUTCH DISC

CLUTCH DISK

1шт.

35

1285996C1

SNAP RING,151mm OD, Internal

1шт.

36

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

2шт.

37

297418A2

SEALING RING,Locking, 105.68mm ID x 113.05mm OD x 3.68mm Thk

2шт.

39

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

2шт.

40

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

1шт.

41

1286038C2

SPACER

1шт.

42

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

1шт.

43

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

44

257099A2

CAGE

Inc. 45

1шт.

45

1345888C1

PLUG

1шт.

47

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30

4шт.

50

1286066C1

SHIM,149mm ID x 180mm OD x 0.08mm Thk

2шт.

50

1286067C1

SHIM,149mm ID x 180mm OD x 0.1mm Thk

2шт.

50

1286068C1

SHIM,149mm ID x 180mm OD x 0.13mm Thk

2шт.

50

1286069C1

SHIM,149mm ID x 180mm OD x 0.3mm Thk

2шт.

50

1286070C1

SHIM,149mm ID x 180mm OD x 0.76mm Thk

2шт.
