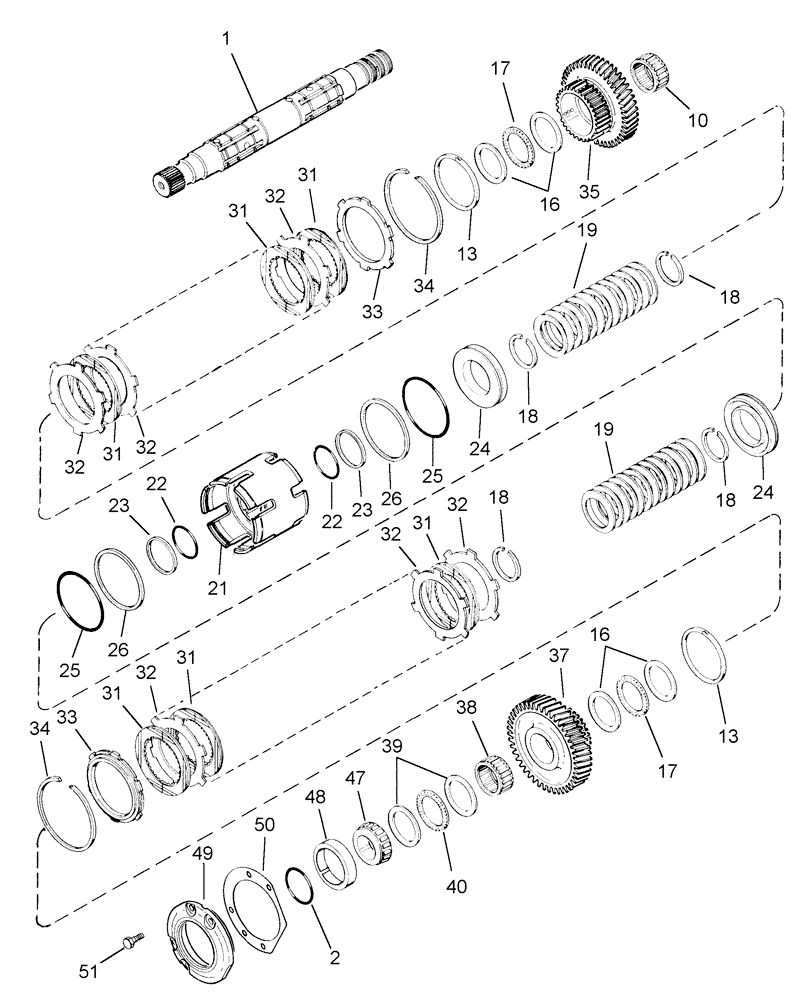

Запчасти Case IH MX255 (06-16) - SPEED TRANSMISSION - OUTPUT SHAFT REAR CLUTCH, TRANSMISSION BSN AJB0361241 (06) - POWER TRAIN

1

230135A2

SHAFT

1шт.

See Figure 06-14

1шт.

2

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

18

93350C1

RING

4шт.

19

1286012C2

BELLEVILLE WASHER

26шт.

21

86987593

CARRIER

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

2шт.

24

86987597

PISTON

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

2шт.

31

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

20шт.

32

92934C2

DISC

Separator

20шт.

33

1342645C3

CLUTCH DISC

CLUTCH DISK

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

2шт.

35

86987609

GEAR

39T

1шт.

37

1285982C1

DRIVEN GEAR

44T

1шт.

38

1285997C1

NEEDLE BEARING,57.14mm ID x 66.73mm OD x 38.1mm W

1шт.

39

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

40

K620185

THRUST BEARING

1шт.

47

1286021C1

ROLLER BEARING,50.01mm ID x 21.99mm W

1шт.

48

29214H

BEARING CUP,110mm OD x 18.82mm W

4-5/16 OD

1шт.

49

1286001C4

CAGE

1шт.

50

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

2шт.

50

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

2шт.

50

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

2шт.

50

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

2шт.

50

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

2шт.

51

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30

6шт.
