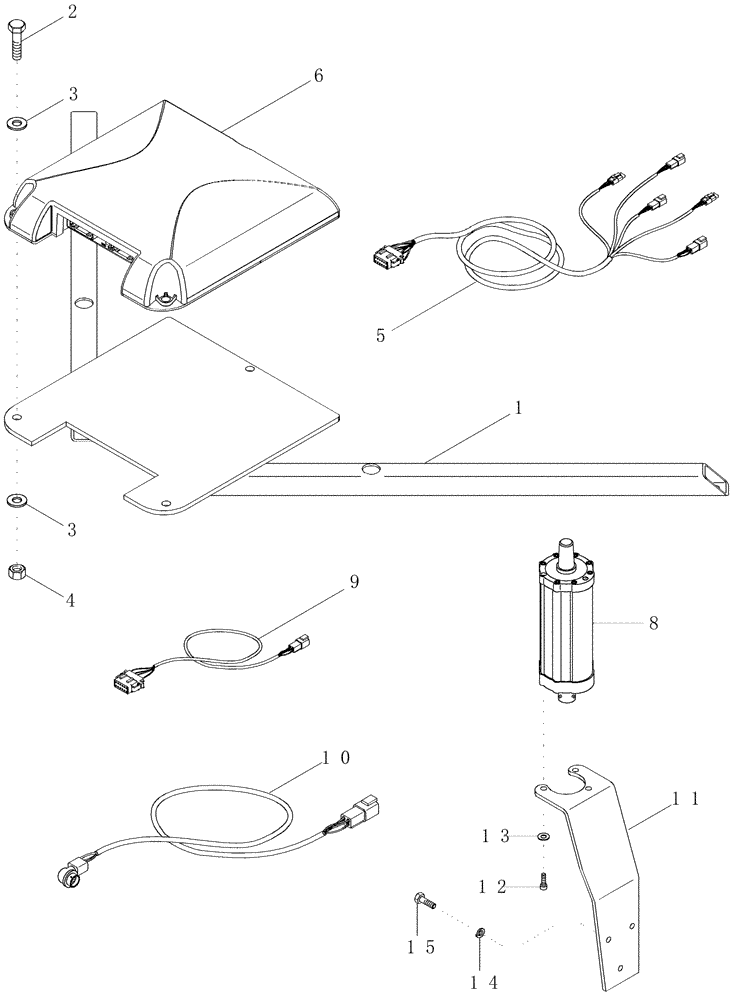

Запчасти Case IH MX255 (04-44) - ACCUGUIDE RADIO AND ANTENNA (04) - ELECTRICAL SYSTEMS

1

87428506

BRACKET

Antenna

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

6шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

5

87310722

WIRE HARNESS

Antenna

1шт.

6

87449980

MODULE

Receiver, DGPS

1шт.

6

84574273R

REMAN ELECT CONTROL

MX210, MX230, MX255, MX285, All CASE IH MAGNUM TRACTOR (NORTH AMERICA), Receiver, DGPS, Reman for New 87449980

1шт.

6

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

87449982

MODULE

Receiver, RTK (Shown)

1шт.

6

84574273R

REMAN ELECT CONTROL

MX210, MX230, MX255, MX285, All CASE IH MAGNUM TRACTOR (NORTH AMERICA), Receiver, RTK (Shown), Reman for New 87449982

1шт.

6

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87428519

RADIO

North America Only

1шт.

8

87443827

RADIO

Austrailia And New Zealand Only

1шт.

9

87441808

CABLE ASSY.

1шт.

10

87441809

CABLE ASSY.

1шт.

11

87428393

BRACKET

1шт.

12

414-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

892-11008

LOCK WASHER,8mm ID

3шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Without Mirrors

3шт.

15

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

with Mirrors

3шт.
