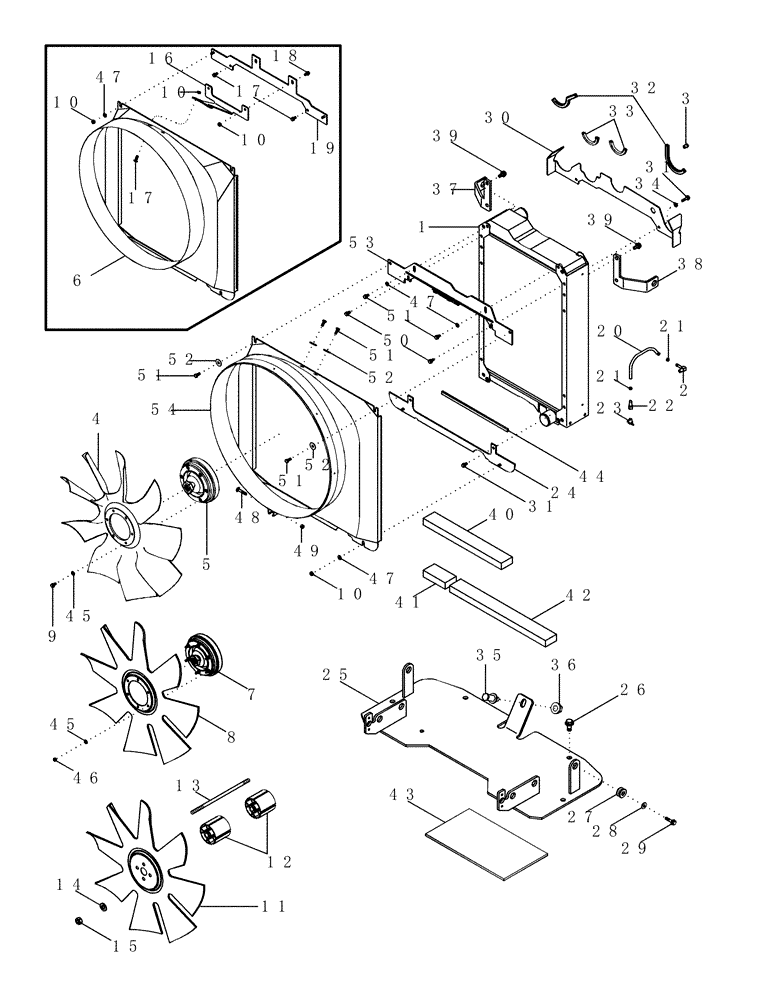

Запчасти Case IH MX255 (02-01) - RADIATOR AND FAN SHROUD (02) - ENGINE

1

REF

INSTRUCTION

Radiator Assy

1шт.

See Figure 02-02

1шт.

2

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

86568834

PLUG,1/4" - 18 NPT

1шт.

4

427509A1

FAN

9 Blade

1шт.

MX210

1шт.

MX230

1шт.

5

447917A2

DRIVE ASSY.

Viscous

1шт.

MX210

1шт.

MX230

1шт.

6

NSS

NOT SOLD SEPARAT

SHROUD (If Equipped)

1шт.

Order 87415556I Shroud REF 54

1шт.

7

447916A1

DRIVE,Cooling Fan Viscous

Viscous

1шт.

MX255

1шт.

MX285

1шт.

8

278432A1

FAN

8 Blade

1шт.

MX255

1шт.

MX285

1шт.

9

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

6шт.

MX210

1шт.

MX230

1шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

11

353083A1

FAN,8 Blades, 700mm OD

8 Blade (If Equipped)

1шт.

With Optional Third Oil Cooler

1шт.

12

A184546

SPACER

Fan

2шт.

With Optional Third Oil Cooler

1шт.

13

87416114

ROD,THREADED

THREADED ROD M10 x 170 mm

4шт.

With Optional Third Oil Cooler

1шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

NSS

NOT SOLD SEPARAT

BRACKET (If Equipped)

1шт.

Order 87413766 REF 53

1шт.

17

811-8025

BOLT,Sht Sq Nk, M8 x 1.25 x 25mm, Cl 8.8

M8 x 25

2шт.

18

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

19

NSS

NOT SOLD SEPARAT

BRACKET (If Equipped)

1шт.

Order 87413766 REF 53

1шт.

20

242065A1

RADIATOR HOSE

1шт.

21

1348264C1

HOSE CLAMP

3/8 ID

2шт.

22

217-180

FITTING,3/8" Hose Barb x 1/4" Female NPTF

3/8 barb x 1/4 fem PT

1шт.

23

217-103

COCK, DRAIN

1/4" PT

1шт.

24

256719A3

SUPPORT

1шт.

25

255647A5

SUPPORT

1шт.

26

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

27

434177A1

ISOLATOR

4шт.

28

495-81120

WASHER,.344" x 1 1/4" x .120"

11/32 x 1-1/4 x 7/64

4шт.

29

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

30

417375A2

LARGE PLATE

PLATE, LARGE

1шт.

31

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

6шт.

32

426356A1

LINING

184 mm (7-1/4 in)

2шт.

33

417390A1

LINING

117 mm (4-7/64 in)

2шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

35

198575A1

BOLT

1шт.

36

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

37

255646A1

SUPPORT

Left Hand

1шт.

38

255645A1

SUPPORT

Right Hand

1шт.

39

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

40

296292A1

SEALING STRIP

1шт.

41

296294A1

SEALING STRIP

1шт.

42

296295A1

SEALING STRIP

1шт.

43

429228A1

SEAL

1шт.

44

357158A2

SEALING STRIP,12.7mm W x 401.5mm L x 8mm Thk

3шт.

45

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

6шт.

MX255

1шт.

MX285

1шт.

46

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

MX255

1шт.

MX285

1шт.

47

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

48

612-4

CARRIAGE BOLT,M8 x 50mm, Class 4.6

Carriage, M8 x 50 mm

1шт.

49

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

50

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

51

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

52

495-81140

WASHER,13/32" x 1 1/4" x .060"

4шт.

53

87413766

BRACKET

1шт.

54

87415556I

SHROUD

Inc. 48, 49, 51 - 53

1шт.
