Запчасти Case IH MX245 (04-05) - HARNESS, ENGINE CONTROL MODULE (04) - ELECTRICAL SYSTEMS

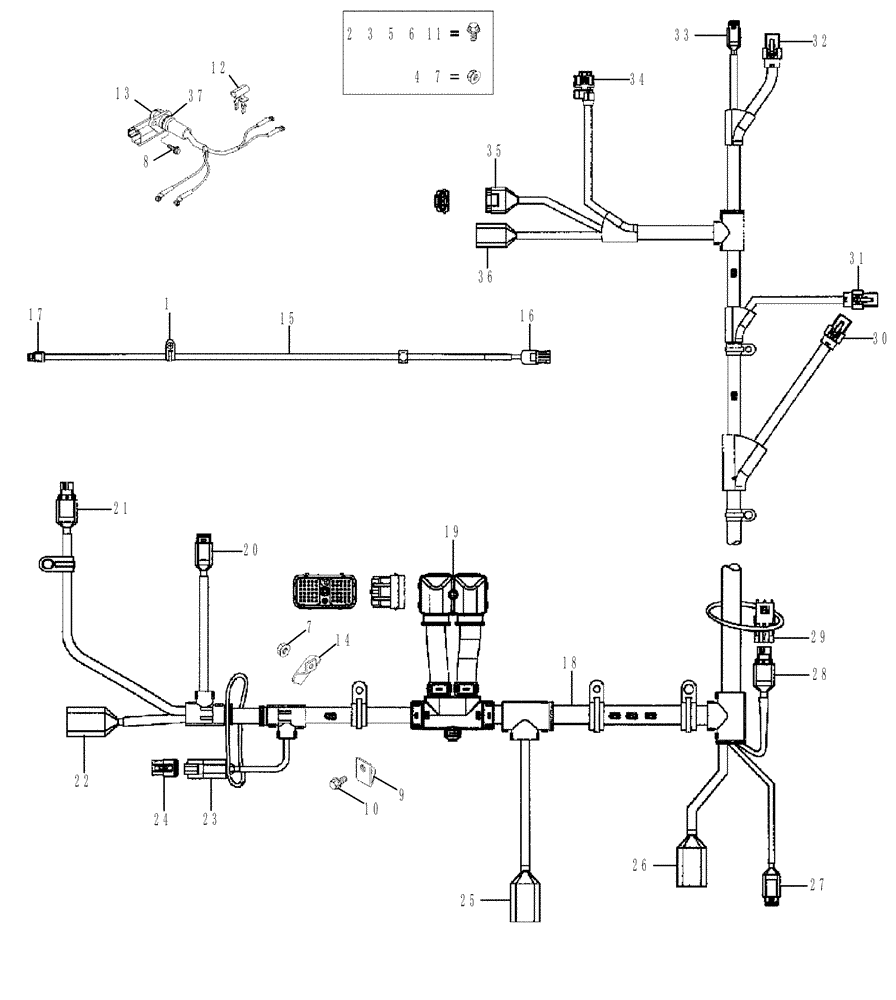

Схема запчастей Case IH MX245 - (04-05) - HARNESS, ENGINE CONTROL MODULE (04) - ELECTRICAL SYSTEMS
22
31
30
23
24
36
4
21
15
16
29
14
3
33
2
7
20
19
32
9
34
10
25
35
12
28
1
7
13
5
11
18
8
17
26
6
27
37

Артикул

Название

Примечание

Количество

1

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

2

313490A1

BOLT

M10 x 14

2шт.

3

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

5

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

6

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12

1шт.

7

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

3шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

3шт.

9

J919294

SUPPORT

Tube Fuel Supply

1шт.

10

87346341

BOLT,Hex Flng, M5 x 0.8 x 12mm, Cl 10.9

1шт.

11

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16: 10.9

1шт.

12

87346212

CLIP, WIRE

8шт.

13

87346235

WIRE HARNESS

Injector Wiring, Inc. 37

3шт.

14

87346319

BRACE

1шт.

15

87750207

HARNESS

Temp Sensor

1шт.

16

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

To Engine ECM Harness, 2-Pin, C1

1шт.

17

87690432

ELEC CONNECTOR

Coolant Temperature, 2-Pin, C2

1шт.

18

87481082

WIRE HARNESS

Engine ECM

1шт.

19

84147085

ECM, 60-Pin, C1

1шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Lift Pump, 2-Pin, C18

1шт.

21

87692855

CONTACT HOUSING,Male, 2 Cavities

To Temperature Sensor Harness, 2-Pin, C5

1шт.

22

NSS

NOT SOLD SEPARAT

Cam Sensor, C13

1шт.

23

87695548

TERMINAL CONNECTOR

Tool Port, 3-Pin, C12

1шт.

24

87695580

ELEC CONNECTOR,Female, 3 Pole

Tool Port, 3-Pin, C12

1шт.

25

NSS

NOT SOLD SEPARAT

Oil Pressure Sensor, C2

1шт.

26

NSS

NOT SOLD SEPARAT

Crank Sensor, C15

1шт.

27

87695582

ELEC CONNECTOR,Female, 2 Pole

W.I.F., 2-Pin, C30

1шт.

28

87692855

CONTACT HOUSING,Male, 2 Cavities

Engine Brake, 2-Pin, C31

1шт.

29

87692855

CONTACT HOUSING,Male, 2 Cavities

Engine Brake, 2-Pin, C31

1шт.

30

84146329

PLUG

Injection Cylinder 5 And 6, 4-Pin, C11

1шт.

31

84146329

PLUG

Injection Cylinder 3 And 4, 4-Pin, C10

1шт.

32

84146329

PLUG

Injection Cylinder 1 And 2, 4-Pin, C9

1шт.

33

87695582

ELEC CONNECTOR,Female, 2 Pole

Inlet Metering Valve Jumper, 2-Pin, C17

1шт.

34

84146683

ELEC CONNECTOR

Fuel Rail Pressure, 3-Pin, C8

1шт.

35

NSS

NOT SOLD SEPARAT

Boost Pressure And IMT, C4

1шт.

36

NSS

NOT SOLD SEPARAT

Ambient Air Pressure, C29

1шт.

37

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

Выбрано товаров: 37
