Запчасти Case IH MX245 (09-37) - CONSOLE, RIGHT HAND, DELUXE AND LUXURY CAB - ASN Z6RZ04001 (09) - CHASSIS/ATTACHMENTS

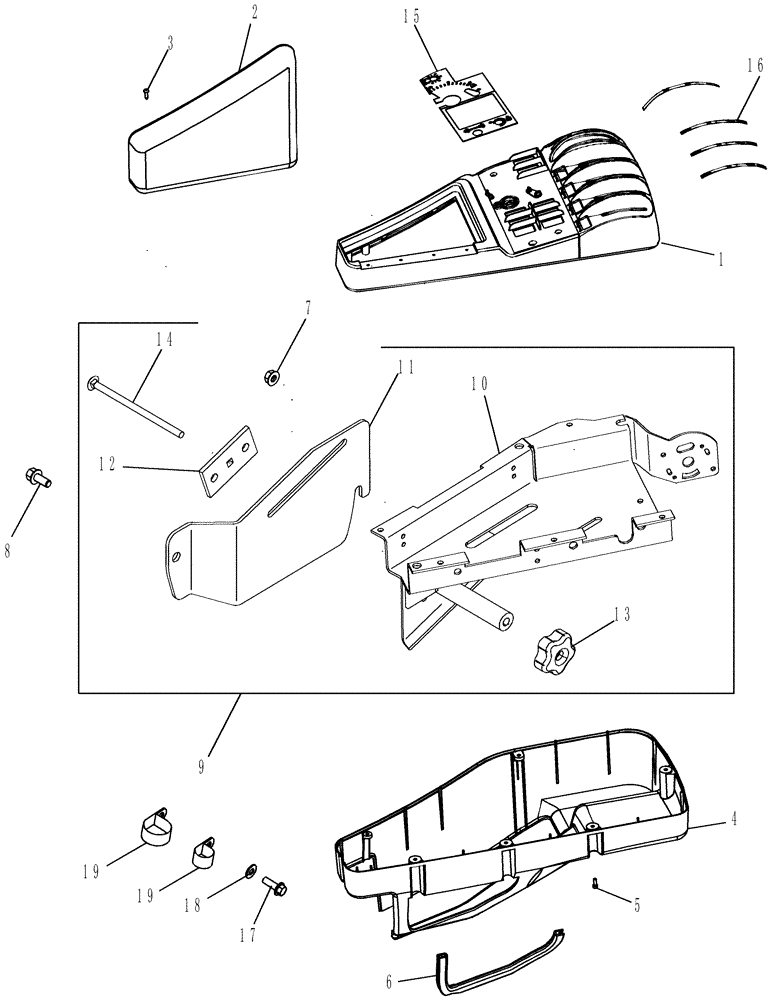

Схема запчастей Case IH MX245 - (09-37) - CONSOLE, RIGHT HAND, DELUXE AND LUXURY CAB - ASN Z6RZ04001 (09) - CHASSIS/ATTACHMENTS
18
17
14
2
9
8
19
7
4
6
11
5
15
16
3
13
12
19
10
1

Артикул

Название

Примечание

Количество

1

87453890

COVER

Upper, Inc. 16

1шт.

1

87341495

COVER

Upper, No Hitch, Inc. 16

1шт.

2

277204A2

CUSHION

1шт.

Deluxe Cab

1шт.

2

358812A2

CUSHION ASSY.

1шт.

Luxury Cab

1шт.

3

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4шт.

4

87364407

HOUSING

Lower

1шт.

5

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

6шт.

6

329057A1

LINING

1шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

M10

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

9

NSS

NOT SOLD SEPARAT

SUPPORT ASSY, Inc. 10 - 14

1шт.

10

87604588

SUPPORT

1шт.

11

87604589

BRACKET

1шт.

12

87604590

PLATE

1шт.

13

87566581

KNOB

1шт.

14

87578954

CARRIAGE BOLT,Reg Sq Nk, M8 x 1.25 x 160mm, Cl 8.8

M10 x 160; 8.8

1шт.

15

87453893

DECAL

1шт.

15

87350580

DECAL

No Hitch

1шт.

16

407759A1

DECAL

1шт.

17

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

18

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

19

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

Not Used when SWCD Package is Installed

1шт.

19

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

Only Used when SWCD Package is Installed

1шт.

Выбрано товаров: 25
