Запчасти Case IH MX245 (09-07) - FENDERS - REAR, WIDE (09) - CHASSIS/ATTACHMENTS

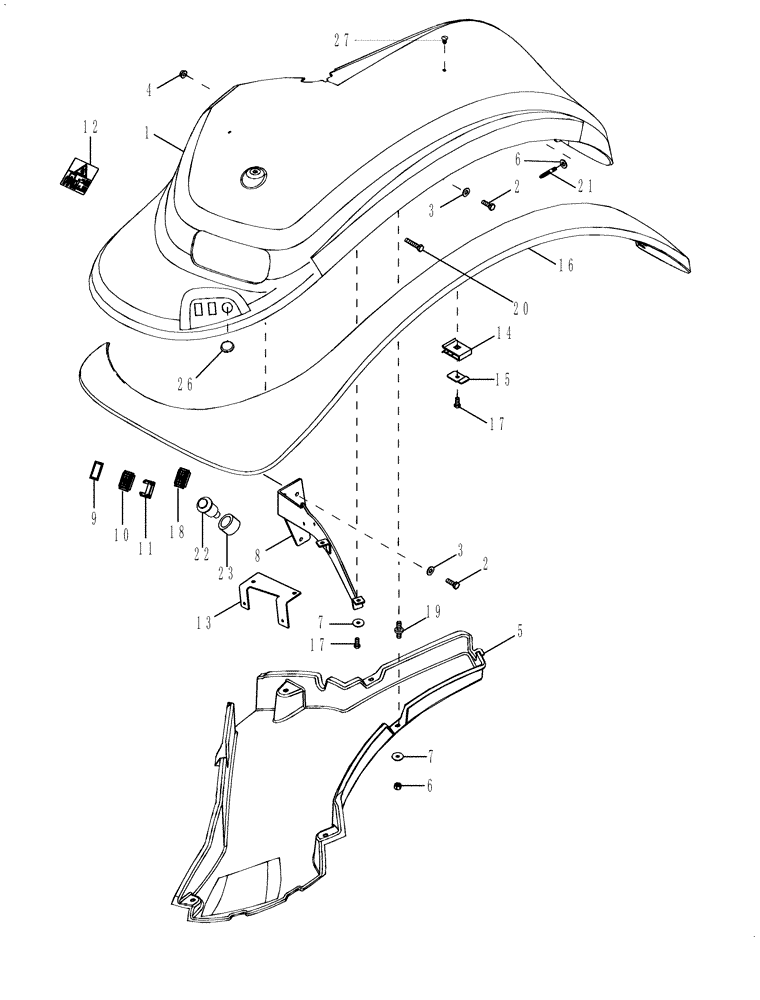

Схема запчастей Case IH MX245 - (09-07) - FENDERS - REAR, WIDE (09) - CHASSIS/ATTACHMENTS
2
19
13
9
7
3
23
6
26
6
4
27
11
7
1
16
21
2
8
5
15
3
12
22
17
18
10
14
20
17

Артикул

Название

Примечание

Количество

1

87703701

FENDER

Right Hand, (Shown)

1шт.

1

87703704

FENDER

Left Hand

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

5

87710353

COVER

Right Hand, (Shown)

1шт.

5

87703709

COVER

Left Hand

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

20шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

8

87710393

SUPPORT

Right Hand, (Shown)

1шт.

8

87703723

SUPPORT

Left Hand

1шт.

9

82022763

PLUG

Without Hitch Switch

2шт.

10

87452577

SWITCH

Remote Hitch, UP/Down

2шт.

11

220416A2

CLAMP

2шт.

12

82030732

DECAL

Right Hand, (Shown)

1шт.

12

82030732

DECAL

Left Hand

1шт.

13

87739798

BRACKET

Right Hand, (Shown)

1шт.

13

87739799

BRACKET

Left Hand

1шт.

14

87331566

SPRING CLIP

30шт.

15

87331565

STOP

10шт.

16

87331561

FENDER EXTENSION

Right Hand, (Shown)

1шт.

16

87331562

FENDER EXTENSION

Left Hand

1шт.

17

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

18

84014182

SWITCH

Remote Upper Link, Push Button

2шт.

18a

87454596

SWITCH

Remote Upper Link, Rocker

1шт.

19

84322608

STUD

20шт.

20

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

21

87477361

STUD

2шт.

22

82025543

PTO SWITCH

Remote PTO

2шт.

23

82013932

GUARD

PTO Remote Switch

2шт.

24

87384127

WIRE HARNESS

Adapter, Not Illustrated

1шт.

25

87384119

SERVICE KIT

Remote Hitch Switch, Incl 18A, 24, Not Illustrated

1шт.

26

82031549

BLANK-OFF PLUG,35mm OD, Black

PTO Switch

2шт.

27

87529297

CLIP

1шт.

Выбрано товаров: 34
