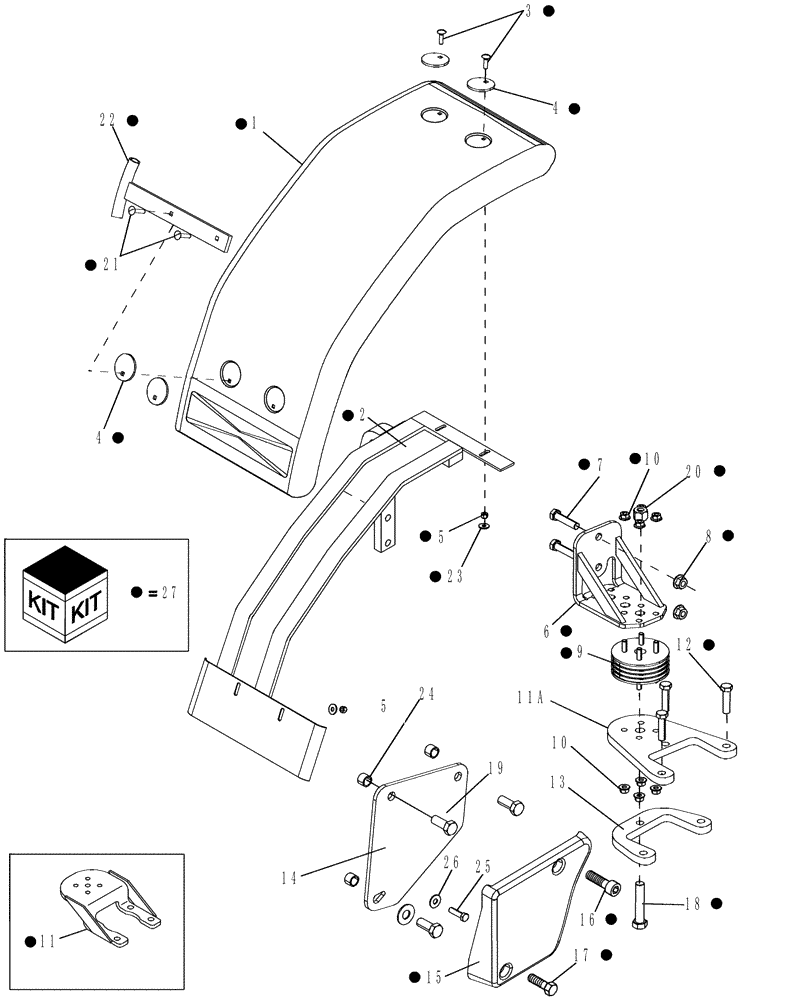

Запчасти Case IH MX245 (09-04) - FENDERS - FRONT, NARROW (09) - CHASSIS/ATTACHMENTS

1

1340664C1

FENDER

Narrow

2шт.

2

244759A2

SUPPORT ASSY.

Right Hand, Shown

1шт.

2

244760A2

SUPPORT ASSY.

Left Hand

1шт.

3

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

4шт.

4

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

2-1/2

8шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

6

87427813

SUPPORT

2шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

8

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

9

226690A2

RUBBER BUMPER

2шт.

10

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

11

87530576

SUPPORT

If Used

2шт.

11a

87716500

SUPPORT

If Used

2шт.

12

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

If Used

8шт.

12

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

If Used

6шт.

13

87716498

SUPPORT

If Used

2шт.

14

84127470

PAD

If Used

2шт.

15

253850A1

BUMPER

Right Hand, Shown (If Used)

1шт.

15

255685A1

BUMPER

Left Hand (If Used)

1шт.

16

565-111

SCREW,M20 x 40mm, Cl 8.8

(If Used)

2шт.

17

555-6

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

(If Used)

2шт.

18

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

19

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

If Used

4шт.

20

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

21

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

4шт.

22

87319913

BAR

2шт.

23

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

24

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

If Used

6шт.

25

120080

BOLT,Hex, M12 x 45, 8.8

If Used

2шт.

26

495-21050

WASHER,7/16"

If Used

2шт.

27

719686016

DIA KIT, ADD PROD

Inc. 1 - 12, 15 - 18, 20 - 23

1шт.
