Запчасти Case IH MX245 (08-22) - REMOTE HYDRAULIC VALVE STACK, ASN AJB363596 (08) - HYDRAULICS

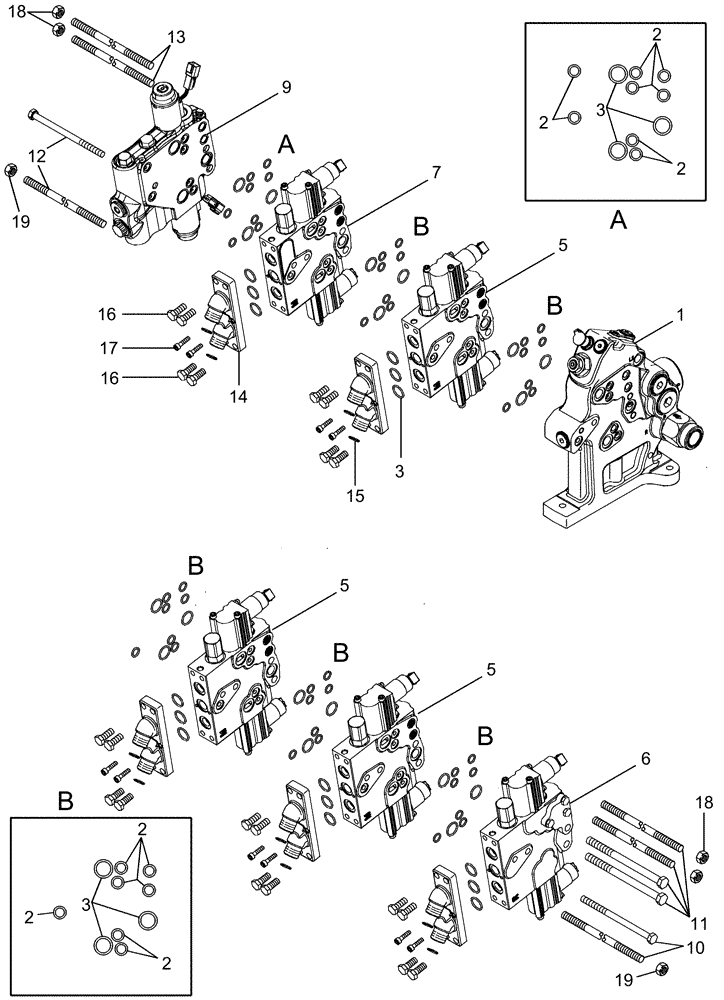

Схема запчастей Case IH MX245 - (08-22) - REMOTE HYDRAULIC VALVE STACK, ASN AJB363596 (08) - HYDRAULICS
a
3
16
2
6
5
14
18
11
19
b
5
b
3
3
7
2
a
2
2
b
1
9
b
2
12
17
b
19
13
10
15
18
5
b
2
16

Артикул

Название

Примечание

Количество

1

87385416

MANIFOLD VALVE

With Standard Flow Hydraulics

1шт.

See Figure 08-23

1шт.

1

87385416R

REMAN-HYD VALVE

Reman Valve With Standard Flow Hydraulics

1шт.

1

87385416C

CORE-VALVE HYD

Core Return Number

1шт.

1

87385418

MANIFOLD VALVE

With TwinFlow Hydraulics

1шт.

See Figure 04-07(02)

1шт.

2

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

3

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

5

87384974

VALVE

Standard

1шт.

See Figure 08-26

1шт.

5

87384974R

REMAN-HYD VALVE

Standard

1шт.

5

87384974C

CORE-VALVE HYD

Return Number

1шт.

6

87384975

VALVE

Right Hand End

1шт.

See Figure 08-26

1шт.

6

87384975R

REMAN-HYD VALVE

Reman Right Hand End

1шт.

6

87384975C

CORE-VALVE HYD

Core Return Number

1шт.

7

87384976

VALVE

Left Hand End, Without Hitch

1шт.

See Figure 08-26

1шт.

7

87384974

VALVE

Left Hand End With Hitch

1шт.

See Figure 08-26

1шт.

7

87384974R

REMAN-HYD VALVE

Left Hand End With Hitch

1шт.

7

87384974C

CORE-VALVE HYD

Return Number

1шт.

9

84164342

VALVE

Hitch

1шт.

See Figure 08-27

1шт.

10

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

3 Remotes

1шт.

10

87418099

STUD

M10 x 140, 4 Remotes

1шт.

10

87418093

STUD

M10 x 185, 5 Remotes

1шт.

11

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3 Remotes

2шт.

11

87418100

STUD

M12 x 140, 4 Remotes

2шт.

11

87418094

STUD

M12 x 185, 5 Remotes

2шт.

12

87418099

STUD

M10 x 130, Without Hitch

1шт.

12

87418093

STUD

M10 x 175, With Hitch, Without Hydraulic Trailer Brake

1шт.

12

87418091

STUD,M10 x 1.5 x 230mm

M10 x 230, With Hitch, With Hydraulic Trailer Brake

1шт.

13

87418100

STUD

M12 x 130, Without Hitch

2шт.

13

87418094

STUD

M12 x 175; 10.9, With Hitch, Without Hydraulic Trailer Brake

2шт.

13

87418164

STUD

M12 x 225; 10.9, With Hitch, With Hydraulic Trailer Brake

2шт.

13

87445565

STUD

M12 x 230, With Hitch, With Hydraulic Trailer Brake

2шт.

14

435643A1

COVER

Inc. 15

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

16

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

17

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

1шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

19

304951A1

NUT

M10, Cl 10, Hardened

2шт.

Выбрано товаров: 43
