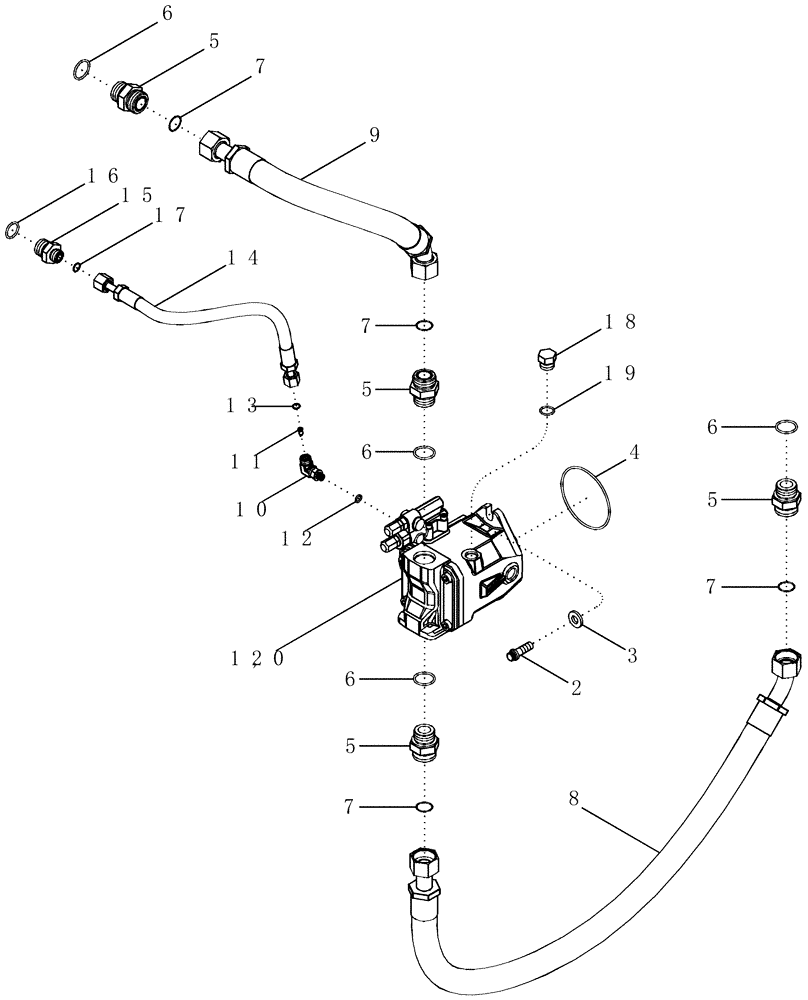

Запчасти Case IH MX245 (08-05) - HYDRAULIC SYSTEM - TWINFLOW PUMP (08) - HYDRAULICS

1

87538170

HYDRAULIC PUMP,111.5 LPM (29.5 GPM)

TwinFlow

1шт.

87538170R

REMAN-HYD PUMP,45 CC

MX215, MX245, MX275, MX305 all (1/06-9/06), MAGNUM 335

1шт.

1

87538170C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87016488

12 PT SCREW,M12 x 35mm, Cl 12.9

M12 x 35; 12.9

2шт.

3

87016612

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

4

274296

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

5

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Inc. 6, 7

4шт.

6

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

8

405503A1

HOSE ASSY.,25.4mm ID x 1150mm L

HOSE ASSY

1шт.

9

413353A2

HOSE ASSY.,25.4mm ID x 550mm L, SAE 100R17

HOSE ASSY

1шт.

10

451226A1

90 ELBOW

Inc. 11 - 13

1шт.

11

133519C1

SCREEN

1шт.

12

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

86985156

HOSE

HOSE

1шт.

15

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl. 16, 17

1шт.

16

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

87030025

PLUG,Hex, M18 x 1.5 ORB

Inc. 19

1шт.

19

87526201

SEAL

15.3 ID x 2.2

1шт.

20

87489367

SERVICE KIT

Compensator

1шт.
