Запчасти Case IH MX245 (08-03) - HYDRAULIC SYSTEM - CHARGE PUMP (08) - HYDRAULICS

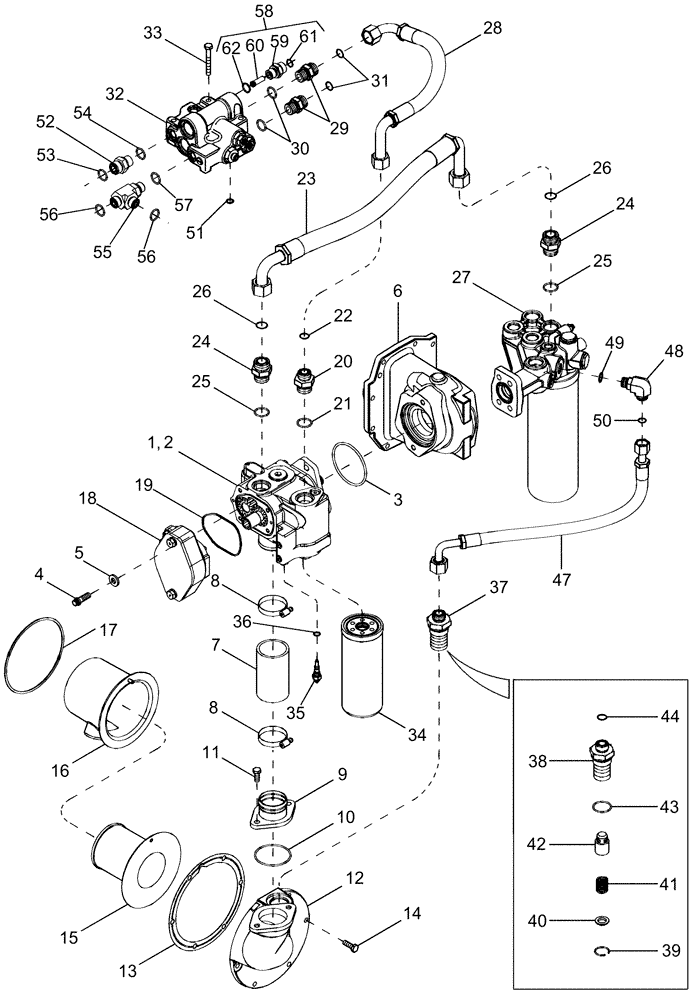

Схема запчастей Case IH MX245 - (08-03) - HYDRAULIC SYSTEM - CHARGE PUMP (08) - HYDRAULICS
44
25
47
14
4
27
23
10
56
34
59
9
35
40
51
29
33
19
13
62
60
18
24
6
37
56
58
28
5
2
25
52
48
22
8
43
3
53
20
30
61
12
55
26
7
15
24
50
49
17
41
26
32
54
11
21
31
16
8
42
38
12
57
39
36

Артикул

Название

Примечание

Количество

1

87483992

PUMP,69.15 CC

Charge, Inc. 2

1шт.

87483992R

REMAN-HYD PUMP

MX215, MX245, MX275, MX305, Magnum 215, Magnum 245, Magnum 275, Magnum 305, Magnum 335

1шт.

87483992C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87407008

SERVICE KIT

1шт.

3

87016957

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

4

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

5

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

6

389550A1

HOUSING

1шт.

See Figure 06-37

1шт.

7

407386A1

HOSE

1шт.

8

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

2шт.

9

407364A1

ADAPTER

1шт.

10

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

12

403416A1

COVER

1шт.

13

139241C5

GASKET,0.79mm Thk

1шт.

14

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

6шт.

15

1348335C1

SCREEN

1шт.

16

1348337C1

SHROUD

Inc. 17

1шт.

17

1342641C1

GASKET,183.6mm ID x 192mm OD x 3mm Thk

1шт.

18

87483993

COVER

1шт.

19

87487899

GASKET

1шт.

20

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 21, 22

1шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

451064A1

HOSE,25.4mm ID x 680mm L

Pump to Filter Inlet

1шт.

24

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 25, 26

2шт.

25

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

401600A1

HEAD ASSY.

Filter, Standard Flow

1шт.

27

405409A1

HEAD ASSY.

Filter, High Flow

1шт.

28

433585A1

HOSE ASSY.,19.1mm ID x 513mm L, SAE 100R2

1шт.

29

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 30, 31

1шт.

30

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

87624364

VALVE

Priority

1шт.

MX215, MX245, MX275, MX305, Magnum 215, 245, 275 and 305

1шт.

See Figure 04-01(02)

1шт.

32

87415151

VALVE

Priority

1шт.

Magnum 305 and 335

1шт.

See Figure 08-19

1шт.

33

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

3шт.

34

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

35

1957801C1

PRESSURE SWITCH

Indicator Assy, Elect

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

407616A2

VALVE,M42 x 2

Lube Relief, Inc. 38 - 44

1шт.

38

407615A2

VALVE BODY

1шт.

39

107452A1

CIRCLIP

1шт.

40

107456A1

CUP WASHER

1шт.

41

431858A1

SPRING

1шт.

42

NSS

NOT SOLD SEPARAT

Plunger

1шт.

43

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

44

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

47

442847A1

HOSE,15.88mm ID x 655mm L

1шт.

48

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 49, 50

1шт.

49

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

51

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

52

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 53, 54

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

55

86579701

TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run

Inc. 56, 57

1шт.

56

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

57

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

58

316443A2

FITTING

Strainer, Inc. 59 - 62

1шт.

59

315919A1

FITTING

1шт.

60

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

61

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

62

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 69
