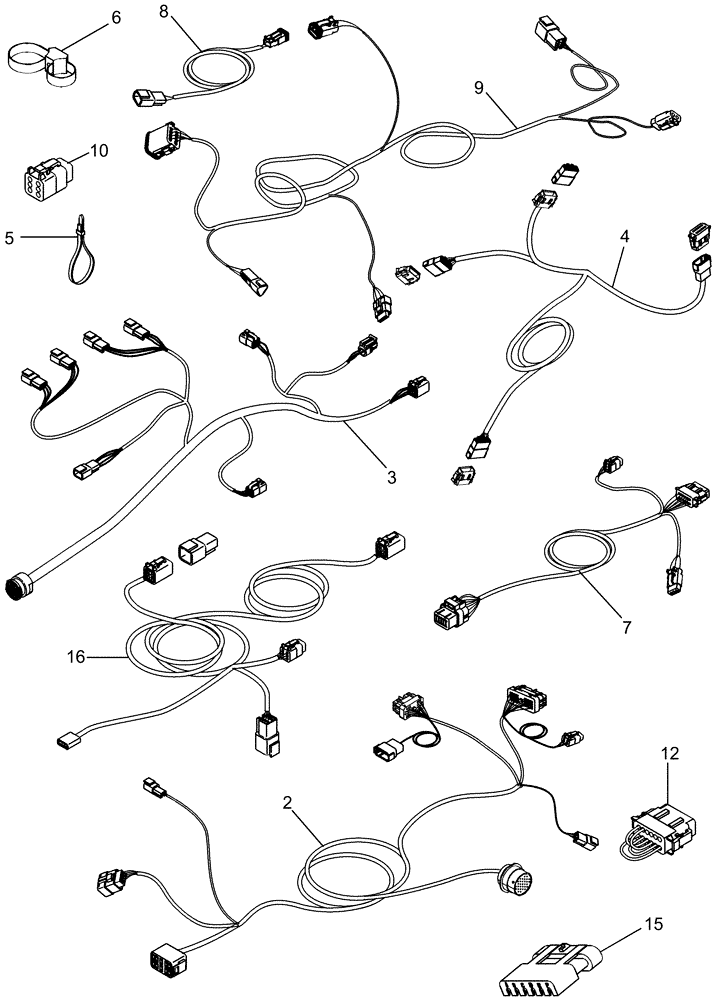

Запчасти Case IH MX245 (04-50) - ACCUGUIDE HARNESSES (04) - ELECTRICAL SYSTEMS

2

87365700

HARNESS

Inside Cab (Shown), Connectors Shown On Figure 04-46, Serial Range: -Z7RZ01521

1шт.

2

87544757

HARNESS

Inside Cab, Start Serial: Z7RZ01521

1шт.

2

87584843

HARNESS

Inside Cab, Serial Range: Z6RZ04001-Z7RZ01521

1шт.

2

87671560

HARNESS

Inside Cab, Connectors Shown On Figure 04-47, Start Serial: Z7RZ01521

1шт.

3

87365702

HARNESS

Outside Cab (Shown), Connectors Shown On Figure 04-46, Serial Range: -Z7RZ01521

1шт.

3

87544758

HARNESS

Outside Cab, Connectors Shown On Figure 04-47, Start Serial: Z7RZ01521

1шт.

4

87655057

WIRE HARNESS

Planter, Start Serial: Z7RZ01521

1шт.

5

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

9шт.

6

86991000

CLAMP

5шт.

7

87558218

HARNESS

Terminal

1шт.

7

87544750

HARNESS

Codi Jumper (Shown), Start Serial: Z7RZ01521

1шт.

7

87608504

HARNESS

Codi Jumper

1шт.

8

87522799

HARNESS

Valve Jumper, Start Serial: Z7RZ01521

1шт.

9

87550664

HARNESS

Secondary Can Bus, Connectors Shown On Figure 04-47, Start Serial: Z7RZ01521

1шт.

10

87555066

PLUG

Secondary Can Jumper, Attach To Secondary Can Bus Harness, Start Serial: Z7RZ01521

1шт.

12

87546834

HARNESS

Implement SWCD Jumper, Use When Implement Bus Does Not Go To SWCD

1шт.

15

87438413

WIRE HARNESS

Normal Steer

1шт.

16

87555604

HARNESS

Steering Sensor

1шт.
