(6-002[B]) - TRANSMISSION, DRIVE SHAFT, MX240, MX270

Запчасти Case IH MX240 (6-002[B]) - TRANSMISSION, DRIVE SHAFT, MX240, MX270 (06) - POWER TRAIN

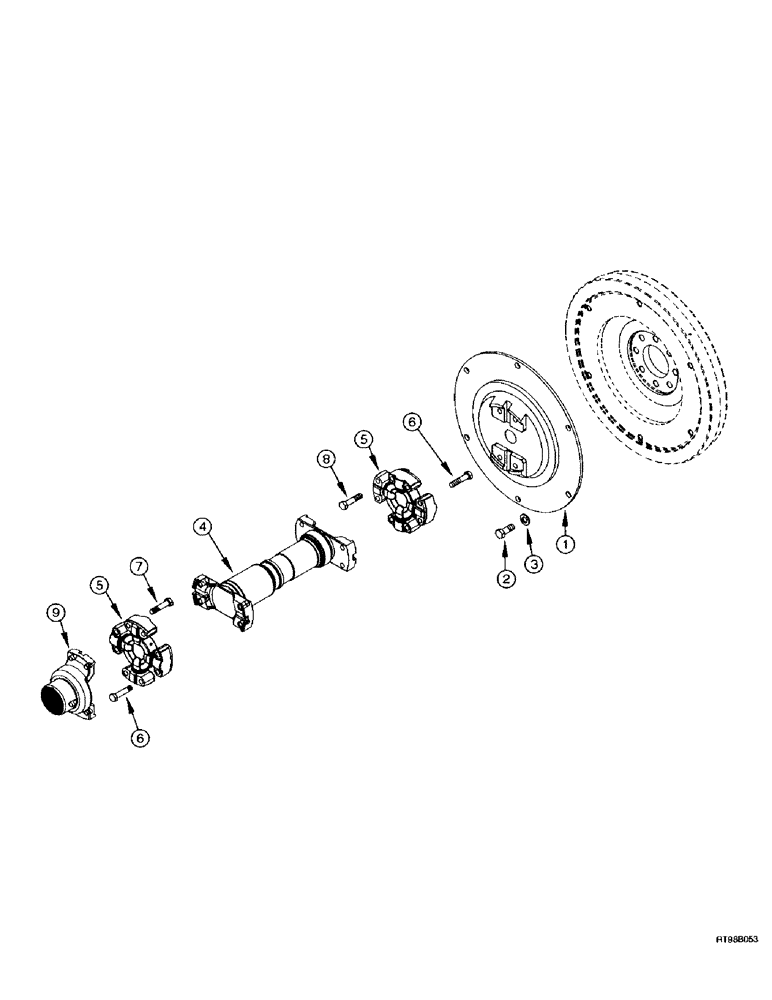

Схема запчастей Case IH MX240 - (6-002[B]) - TRANSMISSION, DRIVE SHAFT, MX240, MX270 (06) - POWER TRAIN
6
6
4
5
3
5
8
1
9
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

248409A2

DRIVE PLATE

1шт.

2

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

3

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

4

301842A1

DRIVE SHAFT

Includes: Ref. 5, 6

1шт.

5

301844A1

UNIVERSAL JOINT

2шт.

6

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

7

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

9

301843A1

YOKE

UNIVERSAL JOINT YOKE input

1шт.

Выбрано товаров: 9
