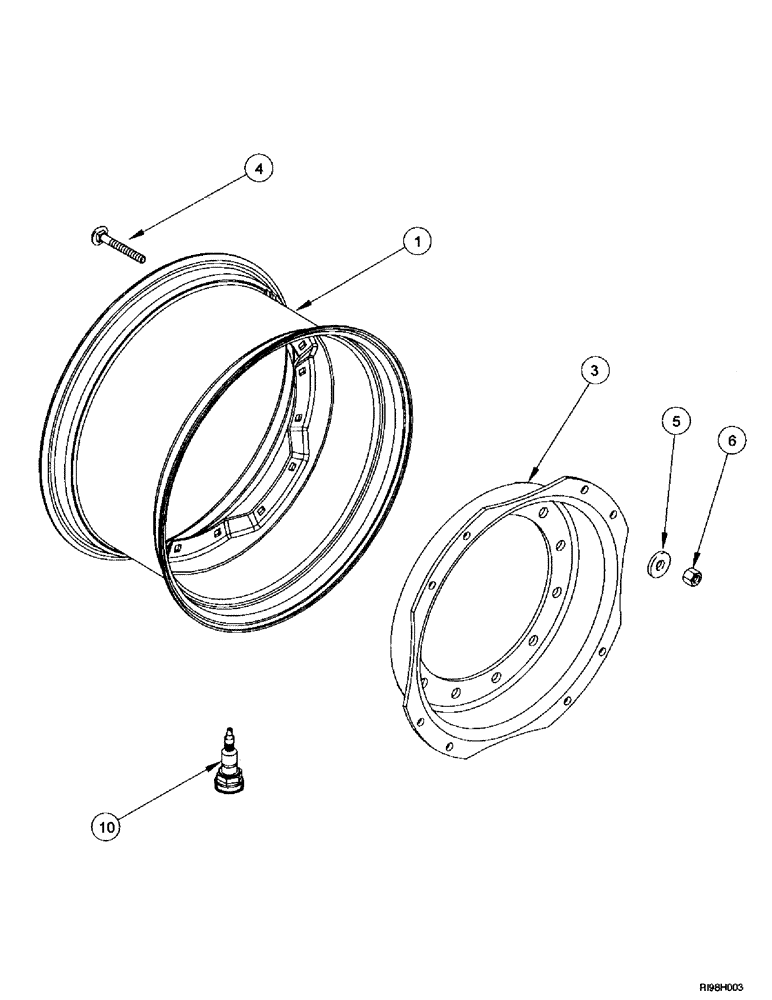

Запчасти Case IH MX240 (5-074) - FRONT WHEELS, M.F.D., MX240, MX270 (05) - STEERING
№
Артикул
Название
Примечание
Количество
188331A1
WHEEL ASSY.
W15L x 28, for tires 420/85R28, 16.9R28, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
188333A1
RIM
WHEEL wheel, W15L x 28
1шт.
3
188328A1
WHEEL DISC
12-bolt
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
188347A1
WHEEL ASSY.
DW18L x 28, for tires 600/65R28, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
188350A1
RIM
WHEEL wheel, DW18L x 28
1шт.
3
188328A1
WHEEL DISC
12-bolt
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
188335A1
WHEEL ASSY.
DW13 x 30, for tires 380/85R30, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
188338A1
RIM
WHEEL wheel, DW13 x 30
1шт.
3
188328A1
WHEEL DISC
12-bolt
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
188339A1
WHEEL ASSY.
DW15L x 30, for tires 480/70R30, 420/90R30, 16.9R30, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
188341A1
RIM
WHEEL wheel, DW15L x 30
1шт.
3
188328A1
WHEEL DISC
12-bolt
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
231997A1
WHEEL ASSY.
W13 x 34, for tires 380/85R34, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
231998A1
RIM
WHEEL wheel, W13 x 34
1шт.
3
231999A1
DISC
DISC wheel
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
259371A1
WHEEL ASSY.
W15L x 34, for tires 480/70R34, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
259416A1
RIM
WHEEL wheel, W15L x 34
1шт.
3
231999A1
DISC
DISC wheel
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
297465A1
WHEEL
ASSY, W10 x 38, for tires 320/85R38, order from machinery price list, Includes: Ref. 1 - 6
2шт.
1
297355A1
RIM
WHEEL wheel, W10 x 38
1шт.
3
297466A1
DISC
wheel
1шт.
4
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
5
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
6
829-1416
NUT,M16, Cl 10
8шт.
10
A20058
VALVE STEM
2шт.
228229A2
WHEEL ASSY.
for tires 320/85R34
1шт.
258255A1
RIM
WHEEL
1шт.
259373A1
WHEEL DISC
DISC
1шт.
240686A1
SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9
BOLT
8шт.
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
829-1416
NUT,M16, Cl 10
8шт.
Выбрано товаров: 49
