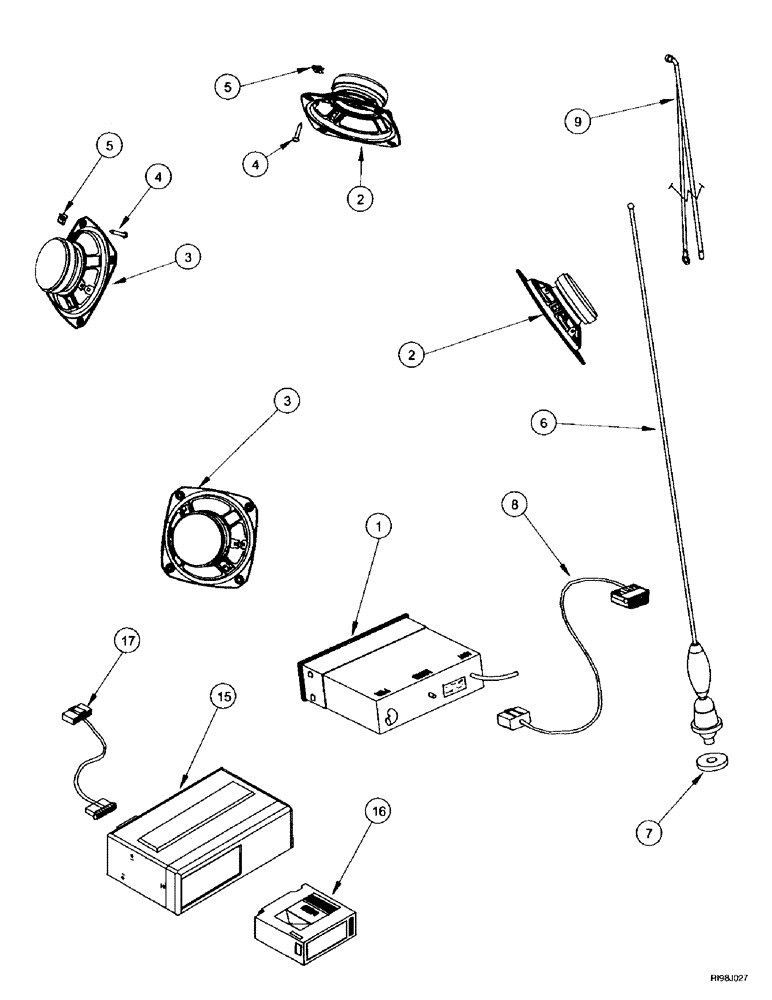

Запчасти Case IH MX240 (4-088) - RADIO, SPEAKERS AND ANTENNA (04) - ELECTRICAL SYSTEMS

313157A1

PACKAGE

KIT attachment, N.A. only, order components, consists of: Ref. 1 - 8

1шт.

1

253772A1

RADIO

AM-FM stereo, N.A. only

1шт.

2

258342A2

SPEAKER

2шт.

3

258343A2

SPEAKER

with woofer

2шт.

4

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

M4.2 x 25, Replaces 761-17325

16шт.

The 761-17325 screw has been replaced by 760-17316 screw, which is shorter. The release on ECN is R010114. SR of the TSG 9/14/01.

1шт.

5

177269A1

SPRING NUT,M4.2

Special

16шт.

Ref. 5 is actually 318323A1 cable as shown on Figure 4-024 of this book.

1шт.

6

318322A1

ANTENNA

1шт.

7

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

8

259902A1

HARNESS

1шт.

313158A1

PACKAGE

KIT attachment, N.A. and Europe, order components, consists of: Ref. 1 - 7

1шт.

1

325061A1

RADIO

AM-FM stereo, with cassette tape player, N.A. and Europe

1шт.

2

258342A2

SPEAKER

2шт.

3

258343A2

SPEAKER

with woofer

2шт.

4

1977686C1

SCREW

M4.2 x 25

16шт.

5

177269A1

SPRING NUT,M4.2

Special

16шт.

6

318322A1

ANTENNA

1шт.

7

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

9

1983247C1

CABLE

Antenna Lead Extension

1шт.

9

318323A1

CABLE

Service, Radio Antenna. LLb 1-11-00

1шт.

313159A1

PACKAGE

KIT attachment, consists of: Ref. 15 - 17

1шт.

15

255086A1

RADIO

PLAYER compact disc

1шт.

16

303432A1

CHARGER

MAGAZINE

1шт.

17

303433A1

HARNESS

1шт.
