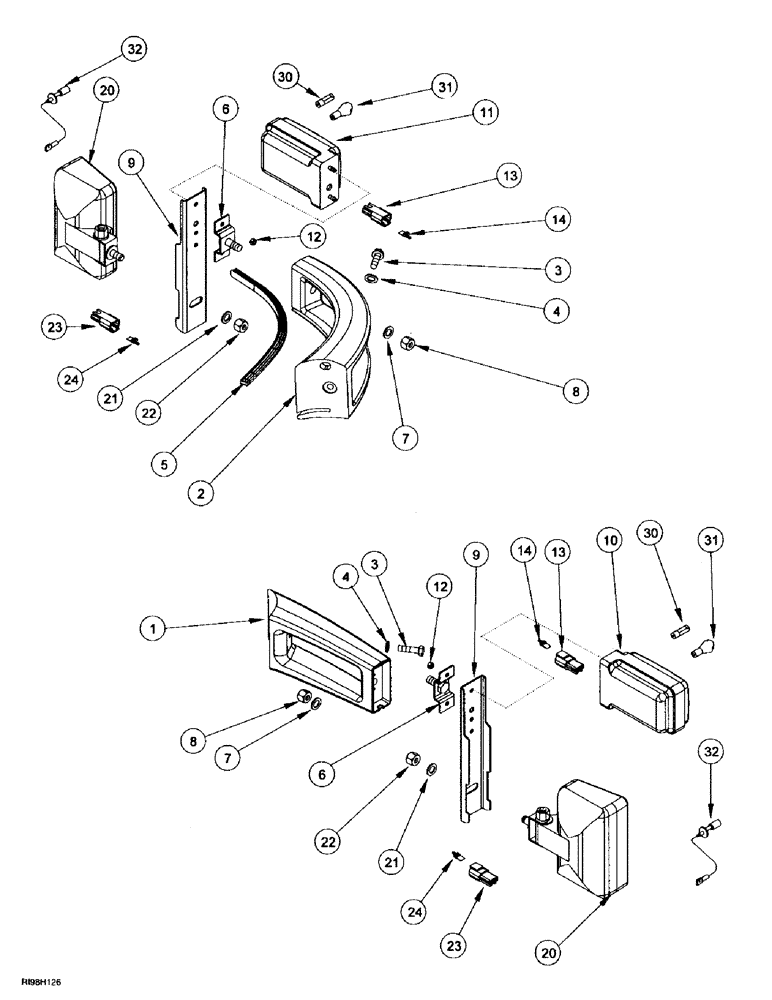

Запчасти Case IH MX240 (4-072) - LAMPS, FRONT POSITION AND WORK, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

1

300182A2

SUPPORT

BRACKET, right-hand

1шт.

2

300183A2

SUPPORT

BRACKET, left-hand

1шт.

3

828-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

308492A1

SEAL

left-hand

1шт.

6

301056A1

SUPPORT

BRACKET

2шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

300188A1

SUPPORT

BRACKET

2шт.

10

303595A1

FLASHER UNIT

flash and position, right-hand, Includes: Ref. 30, 31

1шт.

11

303597A1

LAMP

flash and position, left-hand, Includes: Ref. 30, 31

1шт.

12

824-1405

NUT,M5, Cl 5

4шт.

13

276426A1

ELEC CONNECTOR,Male, 3 Pin

3-pin

2шт.

14

280448A1

STOP LOCK

2шт.

20

301891A1

LAMP

ASSY, work, Includes: Ref. 32

2шт.

21

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

222136A1

ELEC CONNECTOR,Male, 2 Pin

2-pin

2шт.

24

222848A1

ELEC CONNECTOR

WEDGE

2шт.

30

1094368R1

BULB

R19/5 12V5W

1шт.

31

3131227R1

BULB,P25-1, 12V, 21W

1шт.

32

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.
