Запчасти Case IH MX240 (4-062) - HEADLAMPS, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

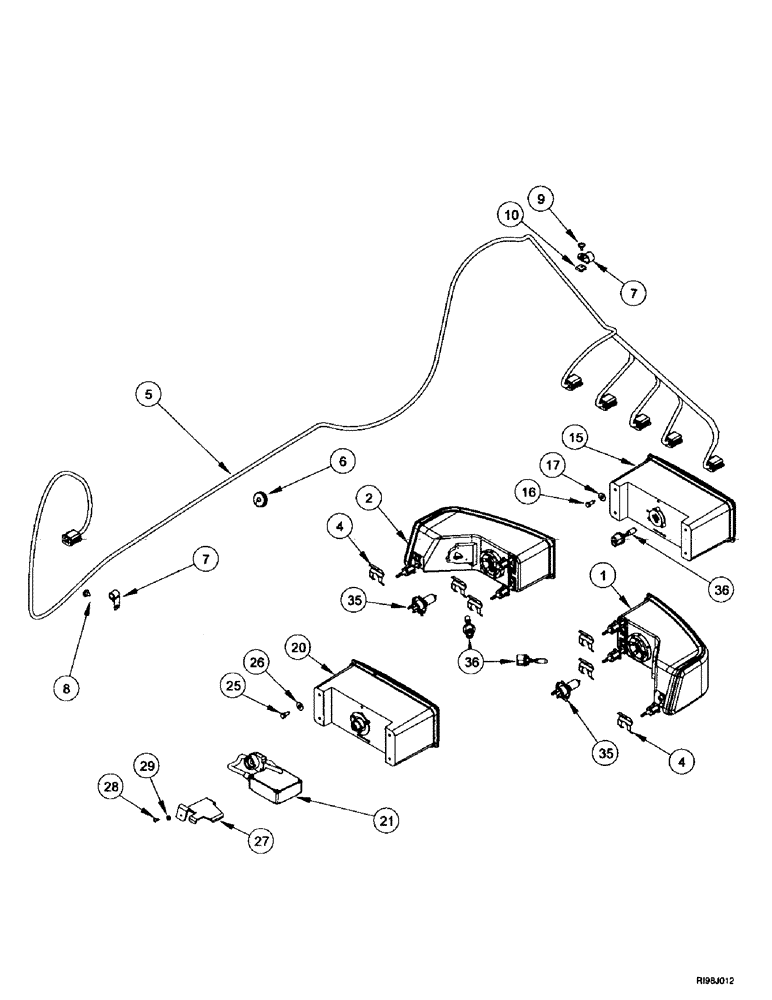

Схема запчастей Case IH MX240 - (4-062) - HEADLAMPS, EUROPE ONLY (04) - ELECTRICAL SYSTEMS
17
36
1
9
2
7
10
28
36
26
21
16
15
7
35
5
25
20
4
35
29
4
6
27
8

Артикул

Название

Примечание

Количество

1

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

right-hand, not for UK, Includes: Ref. 35, 36

1шт.

1

232450A2

HEADLIGHT,12V

right-hand, UK only, Includes: Ref. 35, 36

1шт.

2

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, Not for UK, Incl. Ref. 35, 36

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

left-hand, UK only, Includes: Ref. 35, 36

1шт.

4

259713A1

CLIP

6шт.

5

239126A6

HARNESS

1шт.

6

284238A1

GROMMET

1шт.

7

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

CLIP

6шт.

8

93199C1

FASTENER

2шт.

9

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

4шт.

10

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

15

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

center, halogen, Includes: Ref. 36

1шт.

16

905286R1

SCREW,Hex, M6.3 x 1.8 x 19mm

M6.3 st x 19

4шт.

17

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

313168A1

KIT

attachment, order components, consists of: Ref. 20 - 29

1шт.

20

232455A2

WORK LAMP,HID, 12V, 35W, Clear

center, high intensity discharge - Includes Bulb (NSS due to cost)

1шт.

21

322332A1

BALLAST

1шт.

25

905286R1

SCREW,Hex, M6.3 x 1.8 x 19mm

M6.3 st x 19

4шт.

26

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

27

319929A1

SUPPORT

BRACKET

1шт.

28

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

M4.2 x 13

1шт.

29

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

35

91967C1

BULB

H4

1шт.

36

323093A1

BULB

885-12V

1шт.

Выбрано товаров: 24
