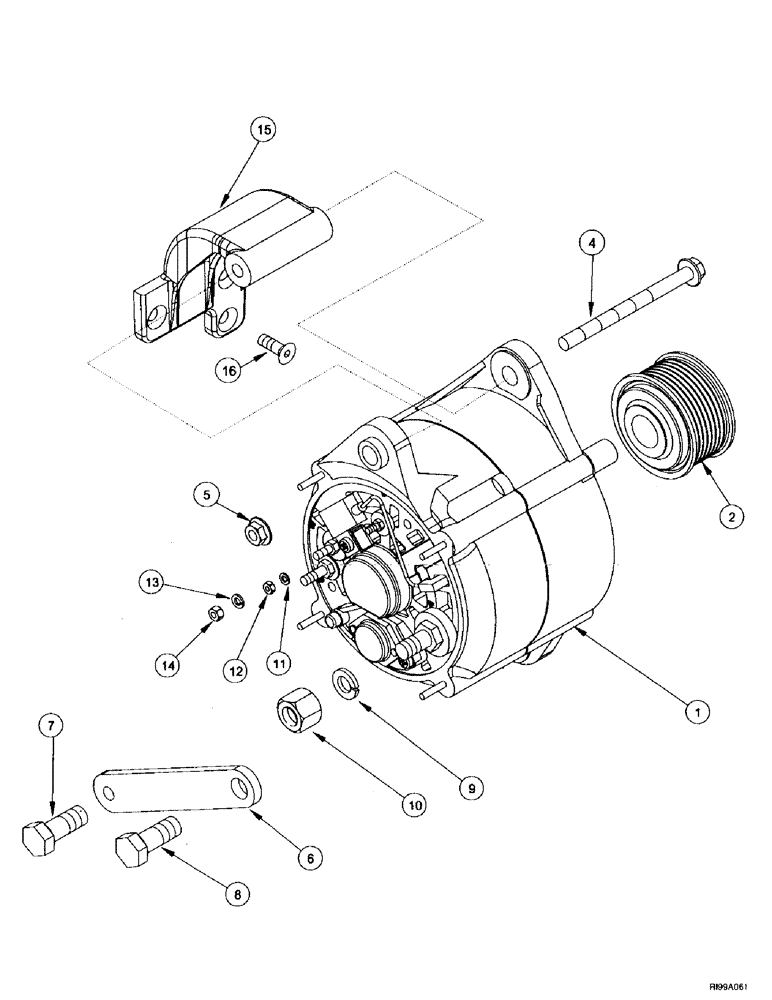

Запчасти Case IH MX240 (4-030) - ALTERNATOR, MOUNTING, MX240, MX270 (04) - ELECTRICAL SYSTEMS

1

91448C2

ALTERNATOR

ASSY, 110 amp, see Figure 4-032

1шт.

1

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

1

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

ASSY, 135 amp, see Figure 4-034

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

125849A1GV

ALTERNATOR

Value, 135 amp

1шт.

2

J926858

PULLEY

1шт.

4

855-12150

BOLT,Hvy Hex, M12 x 150mm, Cl 10.9

flange, M12 x 150; 8.8

1шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

flange, M12

1шт.

6

314757A1

SUPPORT

BRACE

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

9

492-11044

LOCK WASHER,7/16"

1шт.

10

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16

1шт.

11

892-11004

LOCK WASHER,M4

1шт.

12

825-1404

NUT,M4, Cl 8

1шт.

13

892-11005

LOCK WASHER,M5

1шт.

14

824-1405

NUT,M5, Cl 5

1шт.

15

321047A1

SUPPORT

1шт.

16

906050R1

HEX SOC SCREW,Flat Hd, CSK, M10 x 30mm, Cl 10.9

BOLT socket, M10 x 30; 10.9

2шт.
