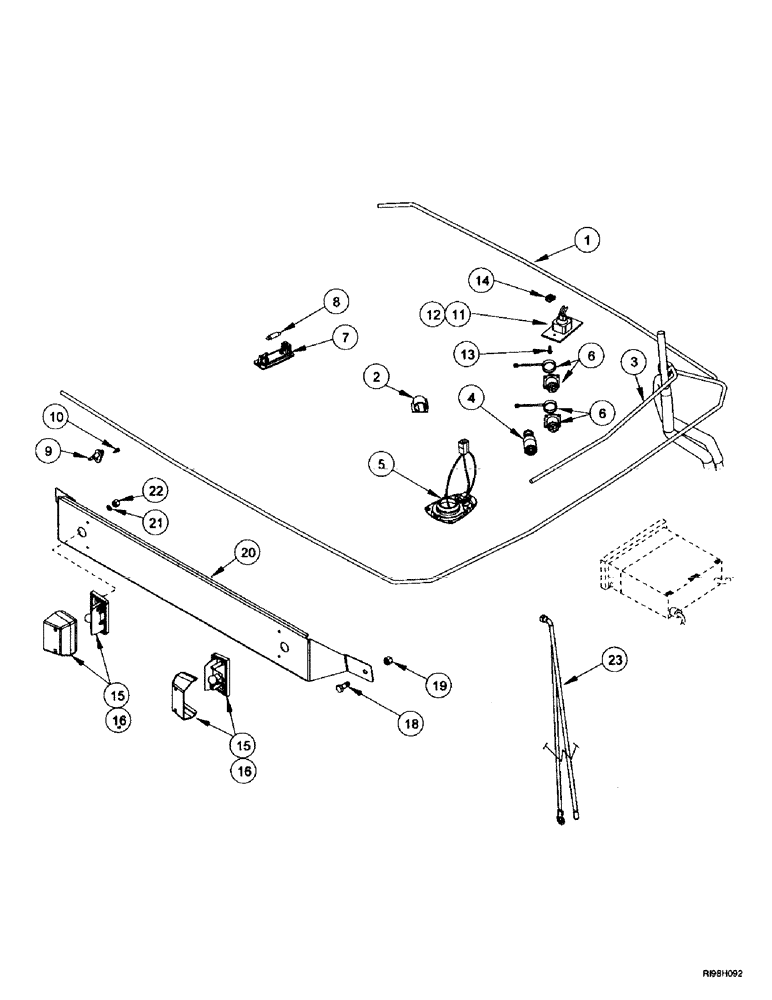

Запчасти Case IH MX240 (4-026) - HARNESS, ROOF, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

1

298140A3

HARNESS

1шт.

2

169850C2

CABLE CLIP

3шт.

3

280584A2

HARNESS

if equipped

1шт.

4

1964773C1

CIGAR LIGHTER

12V

1шт.

5

280568A2

COURTESY LIGHT

DOME LIGHT LAMP

1шт.

6

227739A2

POWER SOCKET

HARNESS

2шт.

7

1983391C1

LAMP,12V, 10W

Includes: Ref. 8

1шт.

8

E35556

BULB,12V, 10W

1шт.

9

1534229C1

PUSH BUTTON SWITCH

1шт.

10

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

2 x 22 mm

1шт.

11

83882C91

LAMP

Includes: Ref. 12

1шт.

12

D71346

TAIL LAMP,12V

BULB, No. 168

1шт.

13

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

14

177269A1

SPRING NUT,M4.2

Special

2шт.

15

3231505R91

LIGHT ASSY.

license plate, Includes: Ref. 16

2шт.

16

P40556

BULB,12V, 10W

12V

1шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

299407A1

SUPPORT

BRACKET license plate

1шт.

21

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

22

832-10405

NUT,M5 x .8, Cl 8

4шт.

23

318323A1

CABLE

antenna, service

1шт.
