Запчасти Case IH MX240 (4-018) - HARNESS, CAB, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

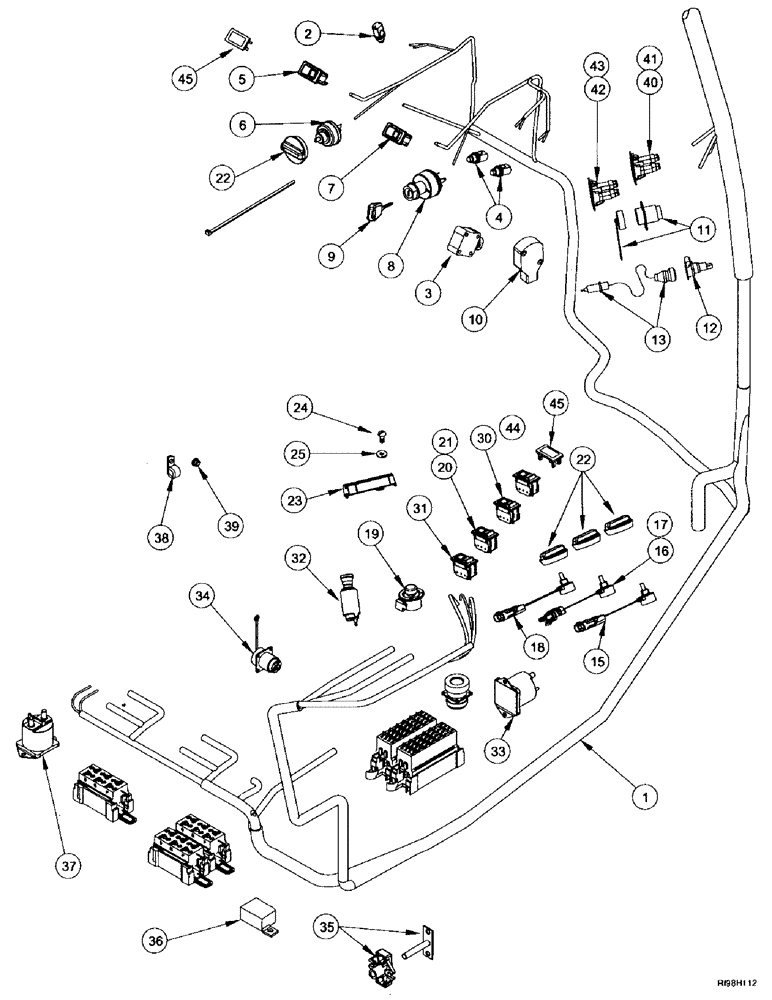

Схема запчастей Case IH MX240 - (4-018) - HARNESS, CAB, EUROPE ONLY (04) - ELECTRICAL SYSTEMS
36
7
4
19
21
22
31
20
24
37
3
33
8
18
39
15
12
44
25
11
38
1
40
32
5
43
2
9
17
16
22
41
13
35
10
30
23
45
45
34
6
42

Артикул

Название

Примечание

Количество

1

284545A4

HARNESS

1шт.

2

279265A2

SWITCH

clutch

1шт.

3

301271A1

SENSOR

clutch

1шт.

4

279265A2

SWITCH

brake

2шт.

5

229364A1

SWITCH

rocker, ether start

1шт.

6

177250A1

LIGHT SWITCH

Work

1шт.

7

357151A1

IGNITION SWITCH

head

1шт.

8

282775A1

IGNITION SWITCH

Includes: Ref. 9

1шт.

9

1964831C2

IGNITION KEY

padded

1шт.

10

231426A1

POTENTIOMETER,2500 Ohm

Throttle, MX240, MX270

1шт.

11

227739A2

POWER SOCKET

HARNESS auxiliary power

2шт.

12

300655A1

POWER SOCKET

OUTLET

1шт.

13

324847A2

HARNESS

monitor

1шт.

15

92115C2

SWITCH

front windshield wiper

1шт.

16

92100C2

SWITCH

blower, without auto temp control

1шт.

17

326281A1

POTENTIOMETER,10,000 Ohm

Blower, with Auto Temp Control

1шт.

18

326282A1

POTENTIOMETER,10,000 Ohm

temperature

1шт.

19

280627A1

SWITCH, MIRROR ADJUS

power mirrors

1шт.

20

255036A1

SWITCH

air conditioning, without auto temp control

1шт.

21

295011A1

SWITCH

climate control, with auto temp control

1шт.

22

1331046C2

KNOB

4шт.

23

308910A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT MODULE, with auto temp control

1шт.

24

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

No. 10 st x 3/4

2шт.

25

495-31027

WASHER,1/4"

17/64 x 5/8 x 3/64

2шт.

30

229379A1

SWITCH

beacon light

1шт.

31

246300A2

IGNITION SWITCH

rear windscreen wiper

1шт.

32

1964773C1

CIGAR LIGHTER

12V

1шт.

33

107655C1

SOLENOID SWITCH

SWITCH, see Figure 4-048

1шт.

34

227739A2

POWER SOCKET

HARNESS

2шт.

35

239428A1

JUNCTION

BLOCK, see Figure 4-046

1шт.

36

1987397C2

FLASHER UNIT,12V

see Figure 4-46

1шт.

37

107655C1

SOLENOID SWITCH

SWITCH, see Figure 4-046

1шт.

38

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

40

1955167C1

SIGHTGLASS

LAMP ASSY, 1st and 2nd trailer indicator light, Includes: Ref. 41

1шт.

41

3141107R1

BULB,W5/1.2, 12V, 1.2W

2шт.

42

284742A1

INDICATOR

LAMP ASSY, auto hitch and pneumatic brake indicator light, Includes: Ref. 43

1шт.

43

3141107R1

BULB,W5/1.2, 12V, 1.2W

2шт.

44

229362A2

SWITCH

hazard

1шт.

45

86000535

PLUG,1.427" x .62", Plastic

Cover

1шт.

Выбрано товаров: 40
