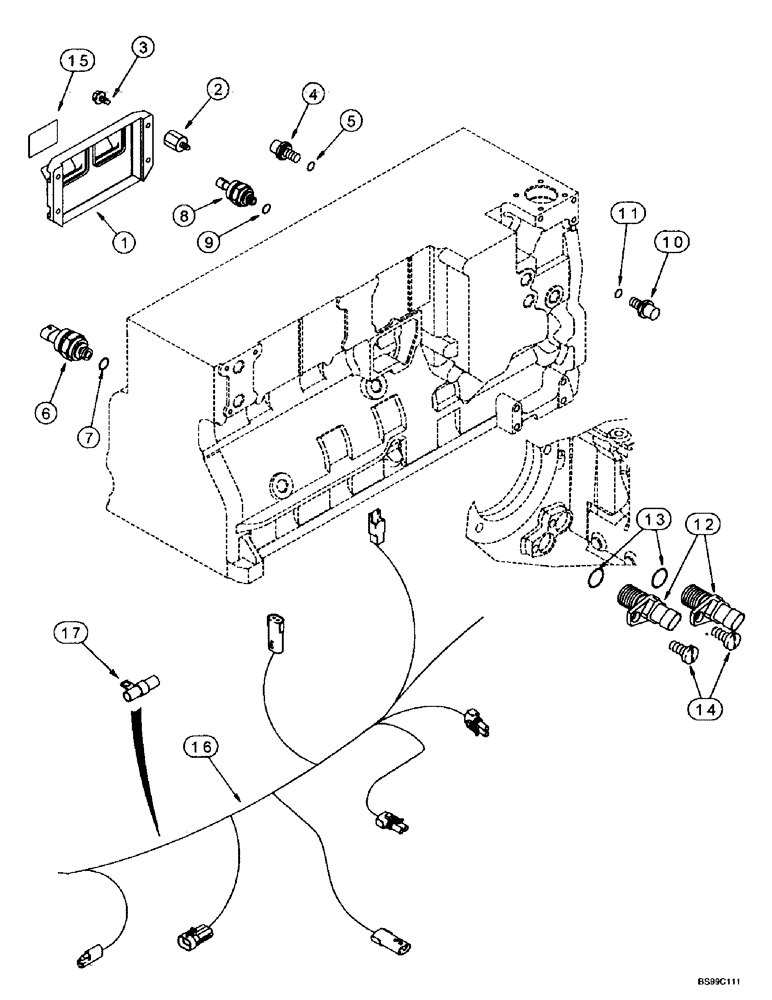

Запчасти Case IH MX240 (4-006) - MODULE, ENGINE CONTROL, MX240, MX270 (04) - ELECTRICAL SYSTEMS

JR944105

REMAN-ELECT MONITOR

REMAN-MONITOR MODULE control

1шт.

JC944105

CORE

return number

1шт.

1

J944105

CONTROL

MODULE

1шт.

2

J942480

SPACER

2шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

J348747

SENSOR

boost, pressure, Includes: J330202

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

J348749

SENSOR

oil pressure, Includes: J330202

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

8

J408345

SENSOR

temperature, intake manifold, Includes: J678912

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

temperature, coolant, Includes: J678912

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

J4002064

SENSOR

position, Replaces: J942816, A77933, Includes: J330478

2шт.

13

J330478

O-RING,0.07" Thk x 0.676" ID

Replaces: 238-5114

2шт.

14

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

15

NSS

NOT SOLD SEPARAT

PLATE

1шт.

16

J944123

HARNESS

engine, 50 pin ECM connector, Includes: Ref. 17

1шт.

17

J944110

SUPPRESSOR

used with: Ref. 17, 18, 19

1шт.

18

313490A1

BOLT

BOLT, M10 x 14, not illustrated

6шт.

19

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

Not Illustrated

1шт.
