(3-042) - FUEL INJECTION, NOZZLE, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH MX240 (3-042) - FUEL INJECTION, NOZZLE, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

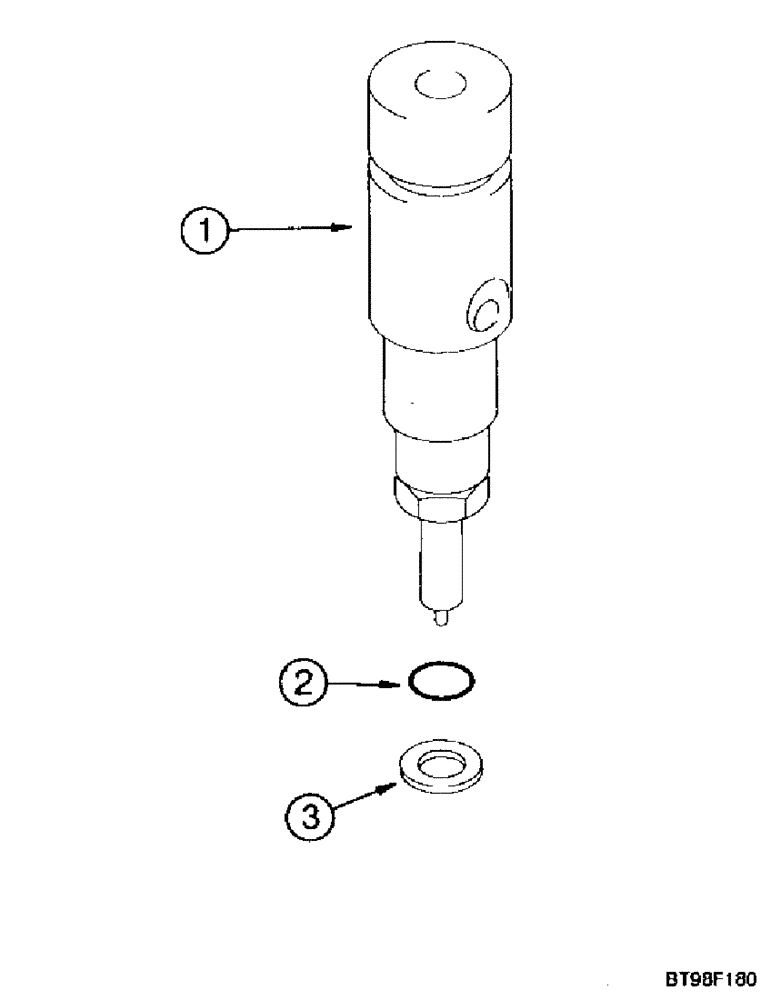

Схема запчастей Case IH MX240 - (3-042) - FUEL INJECTION, NOZZLE, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR943731

REMAN-INJECT NOZZLE

REMAN-INJECTION NOZZLE ASSY, N.A. only

1шт.

JC943730

CORE-INJECTION PUMP

return number

1шт.

1

J943731

NOZZLE INJECTION

ASSY, consists of: Ref. 2, 3

1шт.

2

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

3

J906659

SEAL

M7

1шт.

Выбрано товаров: 5
