Запчасти Case IH MX240 (3-006) - FUEL INJECTION SYSTEM, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

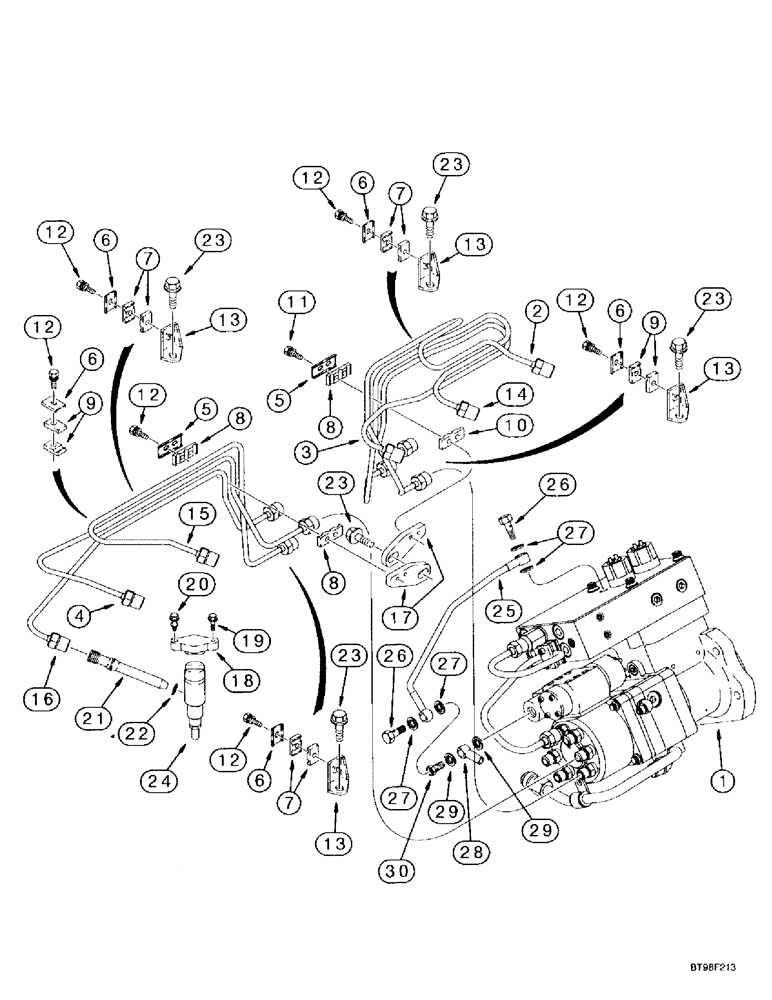

Схема запчастей Case IH MX240 - (3-006) - FUEL INJECTION SYSTEM, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
11
4
19
18
27
23
14
7
8
13
5
15
23
1
26
12
13
13
7
13
28
17
16
21
12
9
8
25
6
6
6
23
10
27
12
12
6
2
29
3
6
26
12
22
7
24
20
5
30
29
23
9
27
12
23
8

Артикул

Название

Примечание

Количество

1

J417160

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY, see Figure 3-028

1шт.

2

J944686

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 1

1шт.

3

J944690

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 3

1шт.

4

J944694

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 5

1шт.

5

J904519

SUPPORT

BRACE

2шт.

6

CURJ904711

CLAMP

BRACKET

5шт.

7

J917746

CLAMP

6шт.

8

J917747

CLAMP

3шт.

9

J919359

CLAMP

4шт.

10

J944699

CLAMP

1шт.

11

J944717

CAPTIVE WASHER SCREW

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

13

J930688

SUPPORT

BRACKET

4шт.

14

J944688

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 2

1шт.

15

J944692

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 4

1шт.

16

J944696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 6

1шт.

17

J944698

SUPPORT

BRACE

2шт.

18

J940639

CLAMP

6шт.

19

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

6шт.

20

J940817

SCREW,Hex Flg, M6 x 1 x 25mm

6шт.

21

J944833

FUEL TUBE

ADAPTER

6шт.

22

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-RING

6шт.

23

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

24

J943731

NOZZLE INJECTION

ASSY, see Figure 3-042

6шт.

25

J943595

FUEL TUBE,6.35 mm OD x 211.1, 112.5 mm L

1шт.

26

J918002

BANJO BOLT

2шт.

27

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15.5 x 1 mm

4шт.

28

J944869

HYD CONNECTOR

1шт.

29

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

4шт.

30

J943592

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

Выбрано товаров: 30
