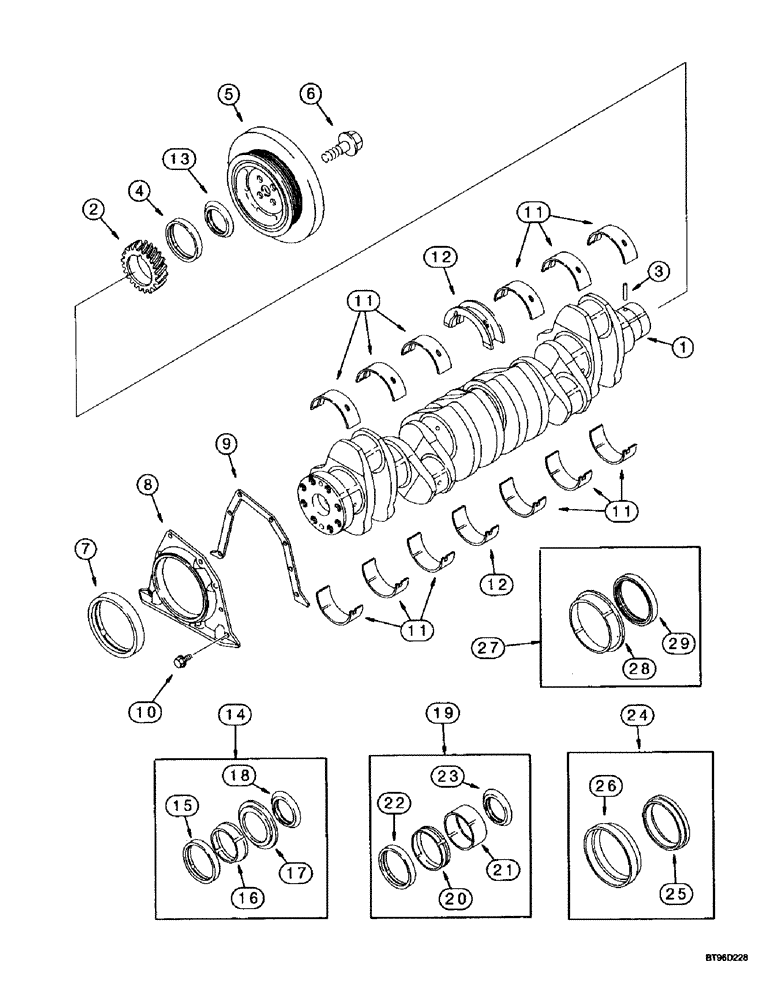

Запчасти Case IH MX240 (2-126) - CRANKSHAFT, MX180, MX200, MX220, MX240, MX270, 6T-830/6TAA-830/6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J918986

CRANKSHAFT

ASSY, new, Includes: Ref. 2, 3

1шт.

1

JR918986

REMAN-CRANKSHAFT

ASSY, N.A. only, Includes: Ref. 2, 3

1шт.

1

JC918986

CORE-CRANKSHAFT

return number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, see Figure 2-131, order A77790

1шт.

5

J925570

DAMPER

PULLEY

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

flange, M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL, see Figure 2-131, order J353978

1шт.

8

J921042

REAR COVER

RETAINER

1шт.

9

J914301

GASKET

mounting

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

A77711

BEARING LINER

crankshaft, standard

6шт.

11

A77712

BEARING LINER

crankshaft, undersize, 0.25 mm

6шт.

11

A77713

BEARING LINER

crankshaft, undersize, 0.50 mm

6шт.

11

A77714

BEARING LINER

crankshaft, undersize, 0.75 mm

6шт.

11

A77715

BEARING LINER

crankshaft, undersize, 1.00 mm

6шт.

12

A77843

BEARING LINER

crankshaft, standard

1шт.

12

A77844

BEARING LINER

crankshaft, undersize, 0.25 mm

1шт.

12

A77845

BEARING LINER

crankshaft, undersize, 0.50 mm

1шт.

12

A77846

BEARING LINER

crankshaft, undersize, 0.75 mm

1шт.

12

A77847

BEARING LINER

crankshaft, undersize, 1.00 mm

1шт.

12

A77848

CRANKSHAFT BEARING

standard, oversize, 0.25 mm

1шт.

12

A77849

CRANKSHAFT BEARING

standard, oversize, 0.50 mm

1шт.

12

A77850

CRANKSHAFT BEARING

undersize, 0.50 mm, oversize, 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

see Figure 2-131, order A77790

1шт.

14

A77790

SEAL KIT

crankshaft, front, consists of: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

sleeve, crankshaft, front, consists of: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J353978

SEAL PACKAGE

crankshaft, rear, Replaces: A77809, consists of: Ref. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

A77810

SERVICE KIT

KIT, sleeve, crankshaft, rear, consists of: Ref. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL

1шт.
