(2-092) - CAMSHAFT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH MX240 (2-092) - CAMSHAFT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

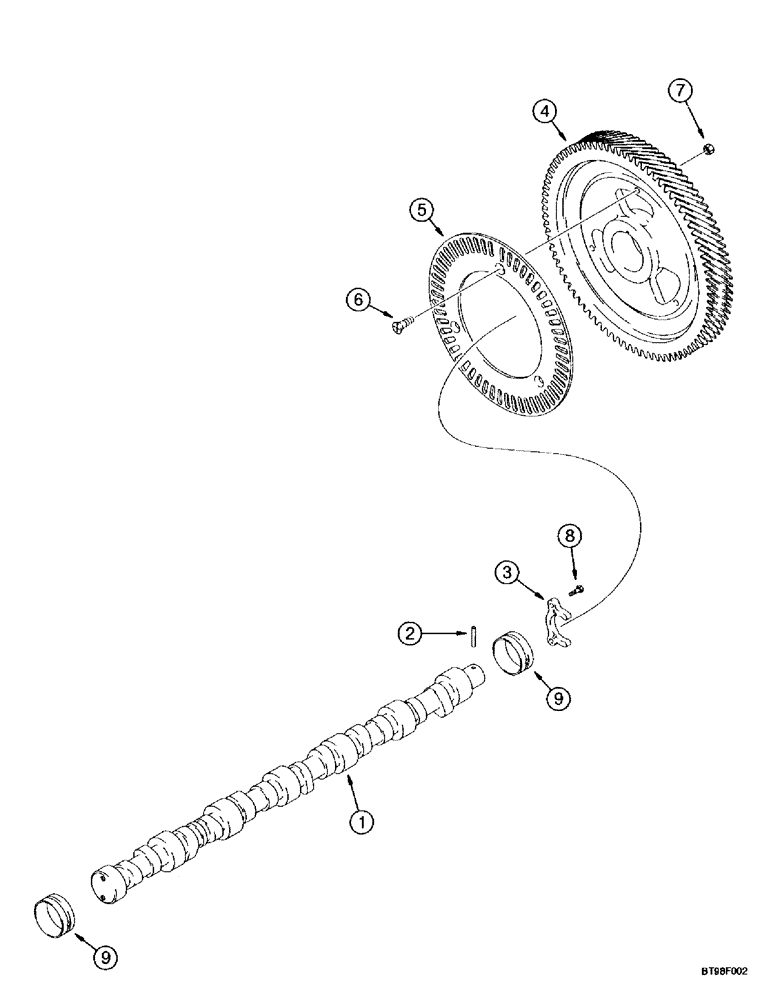

Схема запчастей Case IH MX240 - (2-092) - CAMSHAFT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
9
6
7
1
5
8
2
4
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J944474

CAMSHAFT

1шт.

1

J938163R

REMAN-CAMSHAFT

Reman for new P/N J944474

1шт.

1

J938163C

CORE-CAMSHAFT

Return Number

1шт.

2

J917883

PIN

1шт.

3

J944001

SUPPORT

1шт.

4

J944298

GEAR

ASSY, consists of: Ref. 4, 5, 6, 7

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW

3шт.

7

NSS

NOT SOLD SEPARAT

NUT

3шт.

8

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

9

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Replaces: J943199

7шт.
