(2-086) - CRANKCASE, BREATHER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH MX240 (2-086) - CRANKCASE, BREATHER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

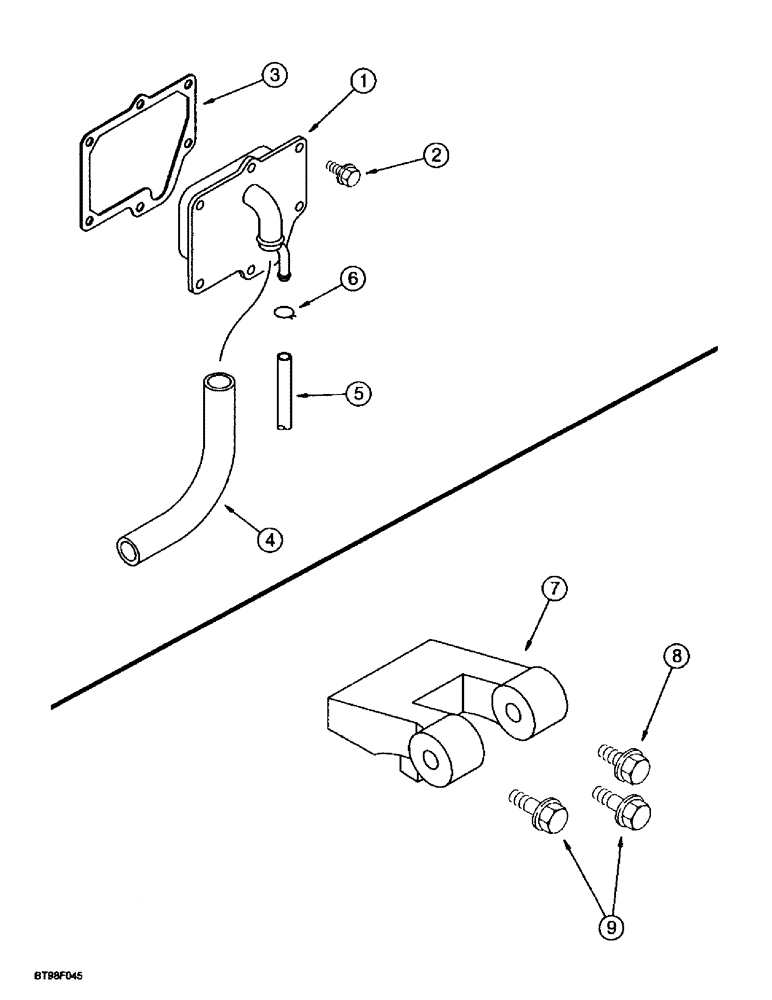

Схема запчастей Case IH MX240 - (2-086) - CRANKCASE, BREATHER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
6
8
3
9
2
5
4
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J944610

BREATHER

1шт.

2

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

3

J944683

GASKET

mounting

1шт.

4

J944714

TUBE,320.00 mm

1шт.

5

J944713

HOSE,100.00 mm

1шт.

6

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

1шт.

7

J944311

SUPPORT

BRACKET

1шт.

8

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

9

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.
