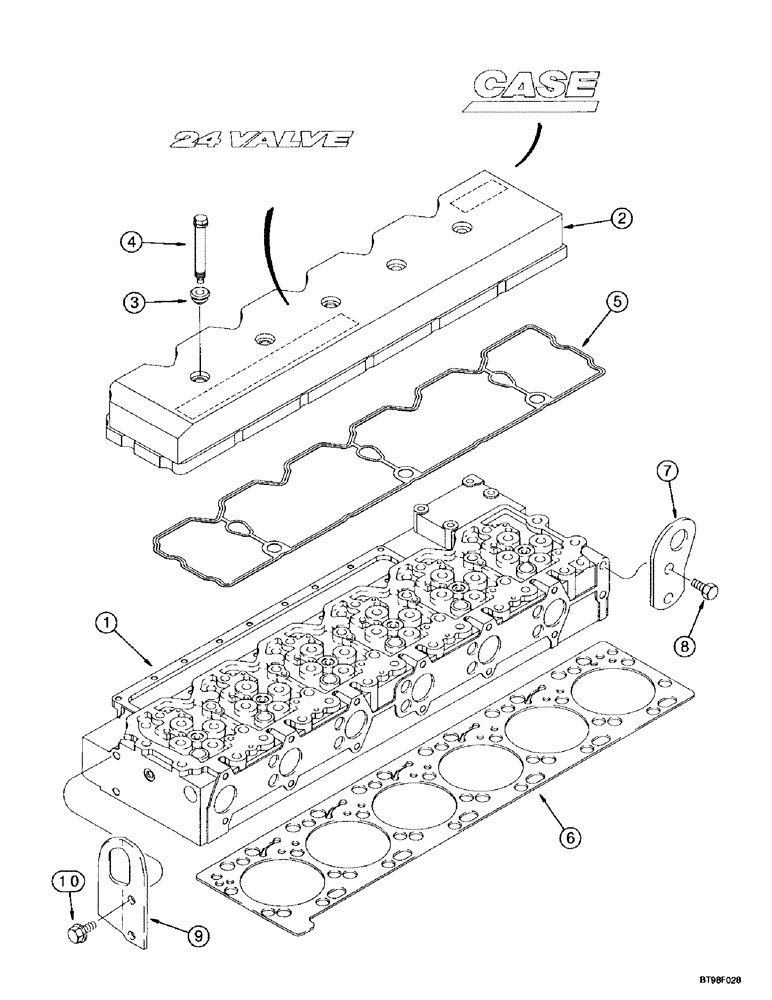

Запчасти Case IH MX240 (2-072) - CYLINDER HEAD, COVER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-078

1шт.

2

J944677

VALVE COVER

1шт.

3

J942659

ISOLATOR

5шт.

Changed effective with engine S/N 46089771. New bolt is J939000, isolator is J939309 and gasket is J939284. The bolt and isolator are NSS and need to be purchased as kit A78024, which contains one of each. New bolts will fit older engines; however, it is recommended that all five bolts and isolators are changed, as well as installing the new style gasket at that time. Information per bulletin NEN SB 004 01.

1шт.

4

J943719

SCREW,Hex Flg, M8 x 1.25 x 78.28mm, Cl 10.9

BOLT flange

5шт.

Changed effective with engine S/N 46089771. New bolt is J939000, isolator is J939309 and gasket is J939284. The bolt and isolator are NSS and need to be purchased as kit A78024, which contains one of each. New bolts will fit older engines; however, it is recommended that all five bolts and isolators are changed, as well as installing the new style gasket at that time. Information per bulletin NEN SB 004 01.

1шт.

5

J943303

GASKET

cover

1шт.

Changed effective with engine S/N 46089771. New bolt is J939000, isolator is J939309 and gasket is J939284. The bolt and isolator are NSS and need to be purchased as kit A78024, which contains one of each. New bolts will fit older engines; however, it is recommended that all five bolts and isolators are changed, as well as installing the new style gasket at that time. Information per bulletin NEN SB 004 01.

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

7

J944239

BRACKET

front

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

J944290

BRACKET

rear

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.
