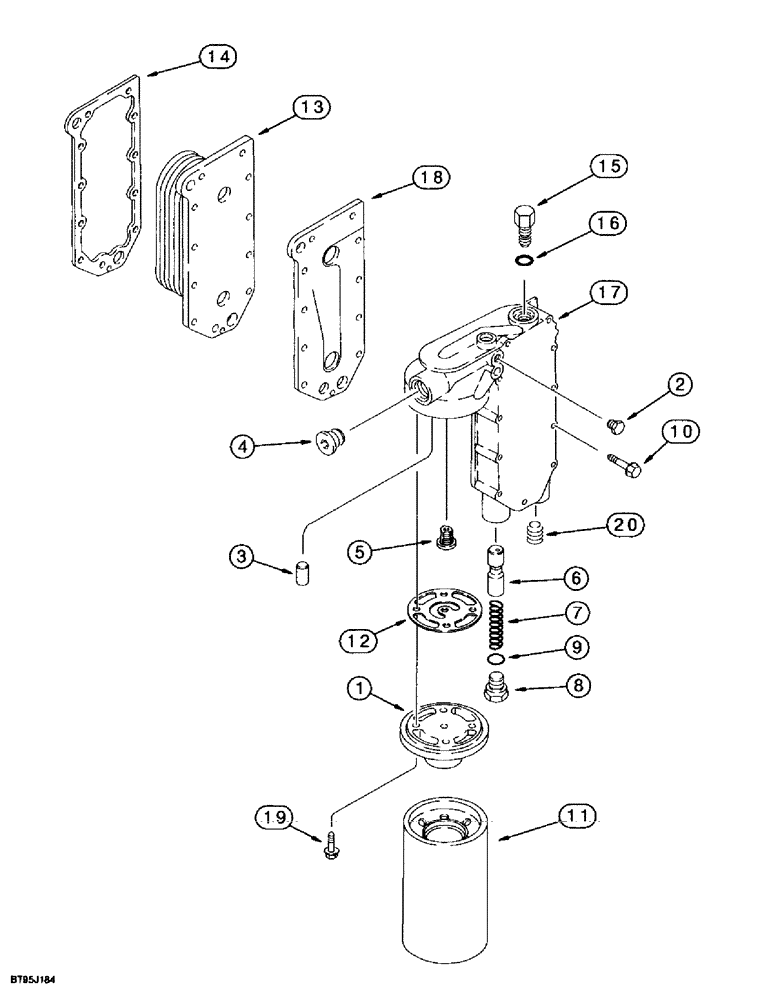

Запчасти Case IH MX240 (2-062) - FILTER AND COOLER, OIL, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J918334

FILTER HEAD

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

A77505

PLUG

3/4 PT

1шт.

5

J933615

VALVE

pressure relief

1шт.

6

J918532

PLUNGER

1шт.

6

J945967

PLUNGER

VALVE relief, Start Serial: 45803926

1шт.

7

A77541

SPRING

1шт.

8

J931084

PLUG

hex, 24 mm, Includes: Ref. 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16"

1шт.

10

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

11шт.

11

J919562

ENGINE OIL FILTER

FILTER

1шт.

12

J921605

GASKET

housing

1шт.

13

J945565

COOLER, OIL

CORE, Replaces: J944463

1шт.

14

J918174

GASKET,0.71mm Thk

mounting

1шт.

J934410

BY-PASS VALVE

THERMOSTAT ASSY, Includes: Ref. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

J931077

COVER

1шт.

18

J929011

GASKET,1.19mm Thk

cover

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.
