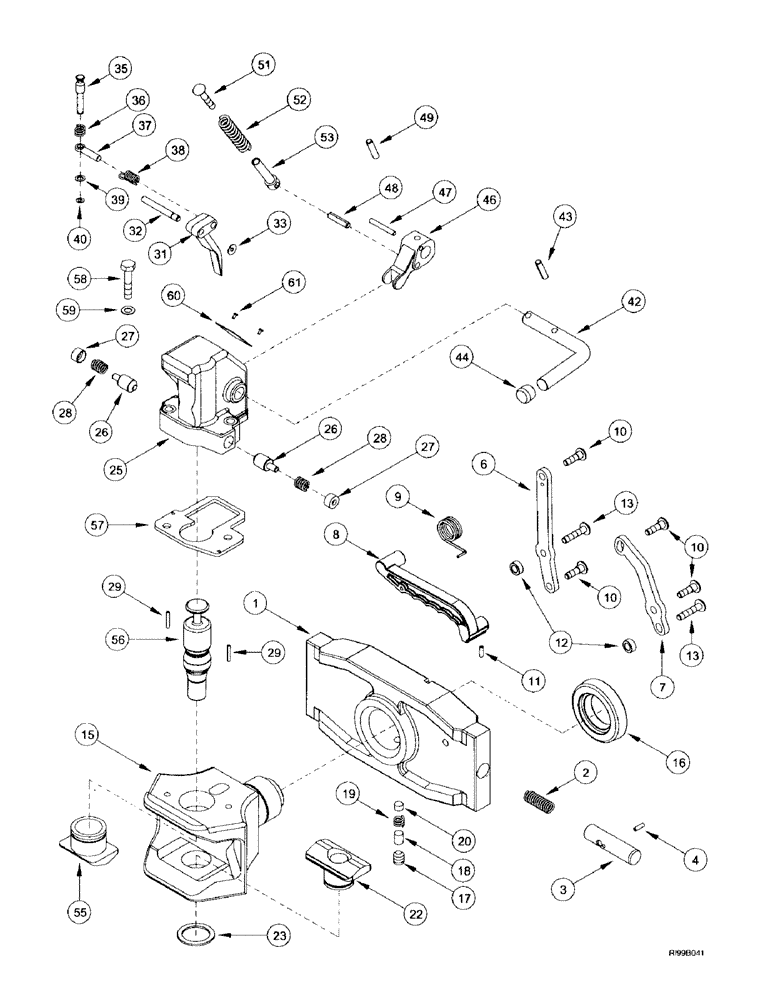

Запчасти Case IH MX240 (9-146) - TRAILER HITCH, AUTO CLEVIS, GERMANY ONLY (09) - CHASSIS/ATTACHMENTS

320890A

KIT

attachment, 32 mm, order from machinery price list, consists of: Ref. 1 - 61

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

2

141013A1

SPRING

2шт.

3

141014A1

PIN

2шт.

4

738-1516

LOCK PIN,M5 x 16, Slotted

Roll

2шт.

141015A1

HANDLE

ASSY, consists of: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

BAR

1шт.

7

NSS

NOT SOLD SEPARAT

BAR

1шт.

8

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING

1шт.

10

NSS

NOT SOLD SEPARAT

PIN

4шт.

11

738-1516

LOCK PIN,M5 x 16, Slotted

Roll

2шт.

12

NSS

NOT SOLD SEPARAT

SPACER

2шт.

13

NSS

NOT SOLD SEPARAT

PIN

2шт.

15

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

177336A1

BRAKE ASSY.

BRAKE ASSY, consists of: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW

1шт.

18

NSS

NOT SOLD SEPARAT

PIN

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING

1шт.

20

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

22

310109A1

BUSHING,17mm ID x 85mm OD x 44mm L

32 mm

1шт.

23

3057331R1

SNAP RING,M40, Ext, Hvy

retaining, 40 x 2.5 mm

1шт.

310187A1

LATCH ASSY.

32 mm, Includes: Ref. 25 - 56

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

26

NSS

NOT SOLD SEPARAT

PIN

2шт.

27

NSS

NOT SOLD SEPARAT

RETAINER

2шт.

28

NSS

NOT SOLD SEPARAT

SPRING

2шт.

29

NSS

NOT SOLD SEPARAT

PIN

2шт.

310130A1

LEVER

consists of: Ref. 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER

1шт.

32

310135A1

SPLIT PIN/SAFETY PIN

1шт.

33

800-416

CIRCLIP,M6, Ext

RING retaining

1шт.

310139A1

PIN

ASSY, consists of: Ref. 35 - 40

1шт.

35

NSS

NOT SOLD SEPARAT

PIN

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING

1шт.

37

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER

1шт.

40

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

310147A1

HANDLE

ASSY, consists of: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

43

NSS

NOT SOLD SEPARAT

PIN

1шт.

44

NSS

NOT SOLD SEPARAT

KNOB

1шт.

310175A1

LEVER

Includes: Ref. 46 - 49

1шт.

46

NSS

NOT SOLD SEPARAT

LEVER

1шт.

47

NSS

NOT SOLD SEPARAT

PIN

1шт.

48

NSS

NOT SOLD SEPARAT

PIN

1шт.

49

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

310181A1

CLEVIS PIN

ASSY, Includes: Ref. 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

SCREW

1шт.

52

NSS

NOT SOLD SEPARAT

SPRING

1шт.

53

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

55

310183A1

BUSHING

32 mm

1шт.

56

310185A1

HITCH PIN,32mm OD x 143mm L

32 mm

1шт.

57

NSS

NOT SOLD SEPARAT

PLATE

1шт.

58

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

59

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

60

310104A1

DECAL

1шт.

61

906028R1

GROOVED PIN

headed, 3 x 6 mm

2шт.
