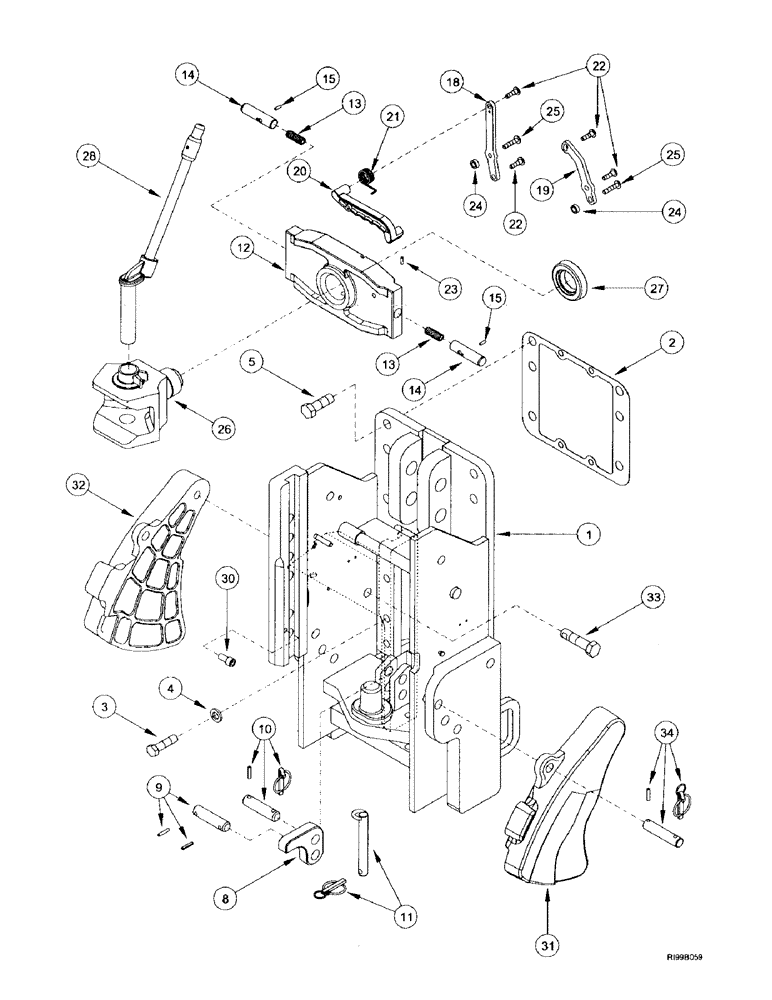

Запчасти Case IH MX240 (9-138) - TRAILER HITCH, MANUAL PIN, FRANCE ONLY (09) - CHASSIS/ATTACHMENTS

1

314327A3

FRAME

MX180

1шт.

1

314329A3

FRAME

MX200, MX220, MX240, MX270

1шт.

2

231991A1

GASKET

cover

1шт.

3

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

8шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

5

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

8

141035A2

LATCH

1шт.

9

141036A1

PIN

1шт.

10

141038A1

PIN

1шт.

11

333337A1

HITCH PIN,19mm OD x 155mm L

2шт.

299135A2

TRAILER HITCH

clevis, consists of: Ref. 12 - 27

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

13

141013A1

SPRING

2шт.

14

141014A1

PIN

2шт.

15

738-1516

LOCK PIN,M5 x 16, Slotted

Roll

2шт.

141015A1

HANDLE

ASSY, consists of: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BAR

1шт.

19

NSS

NOT SOLD SEPARAT

BAR

1шт.

20

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING

1шт.

22

NSS

NOT SOLD SEPARAT

PIN

4шт.

23

738-1516

LOCK PIN,M5 x 16, Slotted

Roll

2шт.

24

NSS

NOT SOLD SEPARAT

SPACER

2шт.

25

NSS

NOT SOLD SEPARAT

PIN

2шт.

26

NSS

NOT SOLD SEPARAT

CLEVIS

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

28

333336A1

CLEVIS PIN

1шт.

30

864-12025

HEX SOC SCREW,M12 x 25mm, Cl 8.8

BOLT socket, M12 x 25

1шт.

31

293792A3

STOP

CAM, right-hand

1шт.

32

293789A3

STOP

CAM, left-hand

1шт.

33

804-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

BOLT lock, M20 x 80; 10.9

2шт.

34

320986A1

PIN

2шт.
