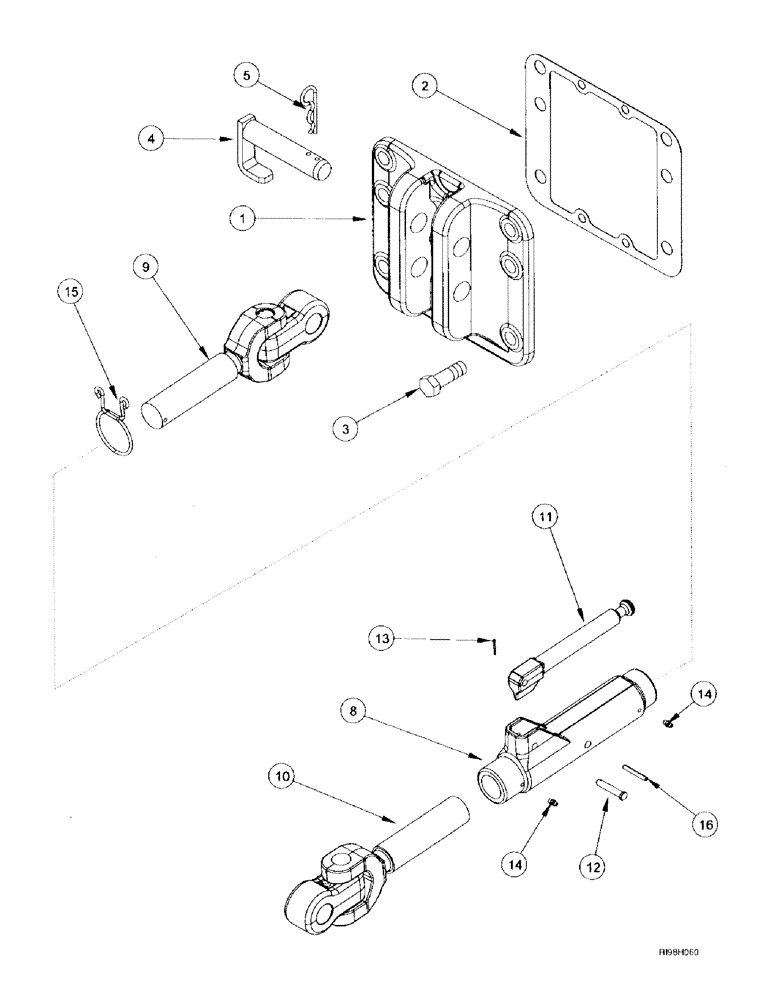

Запчасти Case IH MX240 (9-116) - TOP LINK, HITCH, MX200, MX220, MX240, MX270, N.A. ONLY (09) - CHASSIS/ATTACHMENTS

1

220126A2

HITCH BRACKET

SUPPORT

1шт.

2

231991A1

GASKET

cover

1шт.

3

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

4

321528A2

PIN

1шт.

5

486830R1

COTTER PIN

CLIP spring

1шт.

8

310524A2

TURNBUCKLE

1шт.

9

319585A1

CLEVIS

YOKE, right-hand threads

1шт.

10

319586A1

TRACK ROD END ASSY

YOKE, left-hand threads

1шт.

11

310944A1

HANDLE

1шт.

12

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

15

315912A1

SPRING

1шт.

16

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

1шт.
