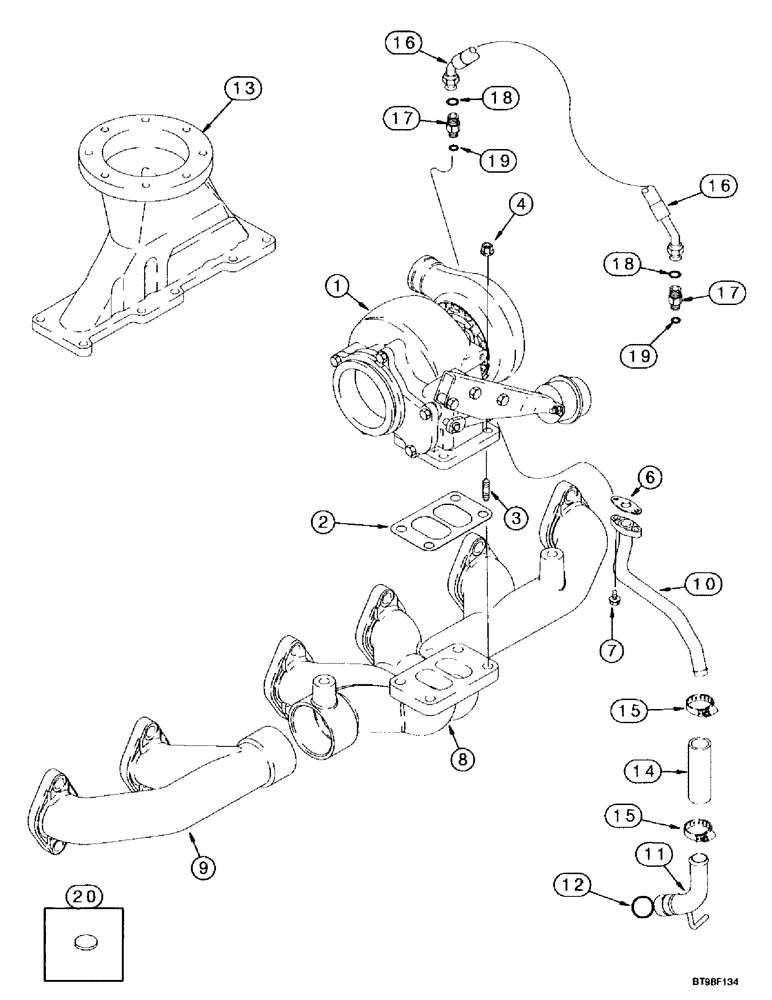

Запчасти Case IH MX240 (2-040) - TURBOCHARGER SYSTEM, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSY, see Figure 2-050

1шт.

2

J901356

GASKET,0.5mm Thk

mounting

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

flange, M10

4шт.

6

J931350

GASKET

mounting, Replaces: J942725

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J943841

EXHAUST MANIFOLD

see Figure 2-034

1шт.

9

J943850

MANIFOLD

see Figure 2-034

1шт.

10

J943822

TUBE ASSY.

1шт.

11

J944608

TUBE,0.875" OD

used with: J931824

1шт.

12

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING

1шт.

13

J943613

AIR INTAKE

see Figure 2-034

1шт.

14

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

15

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

16

J942223

HOSE

1шт.

17

J922789

HYD CONNECTOR

ADAPTER, Includes: Ref. 18, 19

2шт.

18

313263A1

O-RING,2.2mm Thk x 9.3mm ID

(M10.5 ID x 1.8 Thk)

1шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

20

J920706

PLUG

expansion, 22 mm

1шт.
