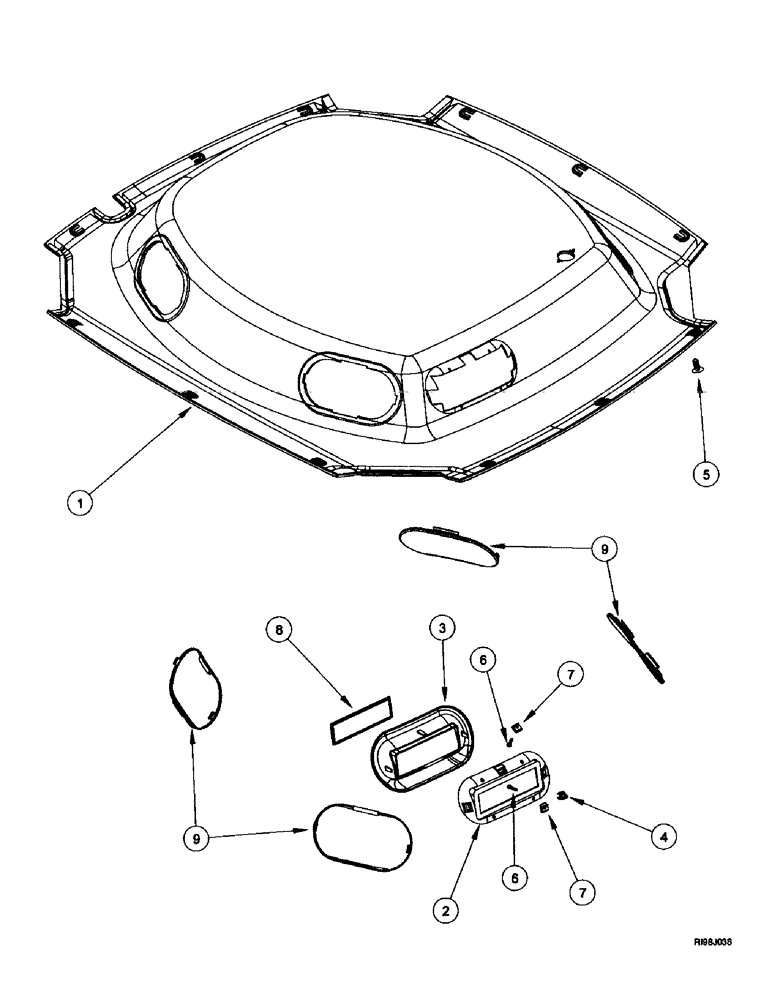

Запчасти Case IH MX240 (9-050) - CAB, HEADLINER, STANDARD TRIM (09) - CHASSIS/ATTACHMENTS

1

294489A3

LINING

HEADLINER

1шт.

The black horseshoe clips where Ref. 1 is pointing and Ref. 5, 93199C1 fastener screws into are NSS through Case Co., but can be obtained direct from vendor of headliner, Advanced Component tech. cam djo 3/7/00

1шт.

2

294491A2

ANCHOR

MOUNT radio

1шт.

3

294490A2

BEZEL

1шт.

4

278316A1

CLIP,ELECTRICAL

3шт.

5

93199C1

FASTENER

10шт.

6

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.

7

177269A1

SPRING NUT,M4.2

Special

4шт.

8

1535219C1

COVER

PLATE, without radio

1шт.

9

294492A1

SIEVE

GRILLE speaker cover

4шт.
