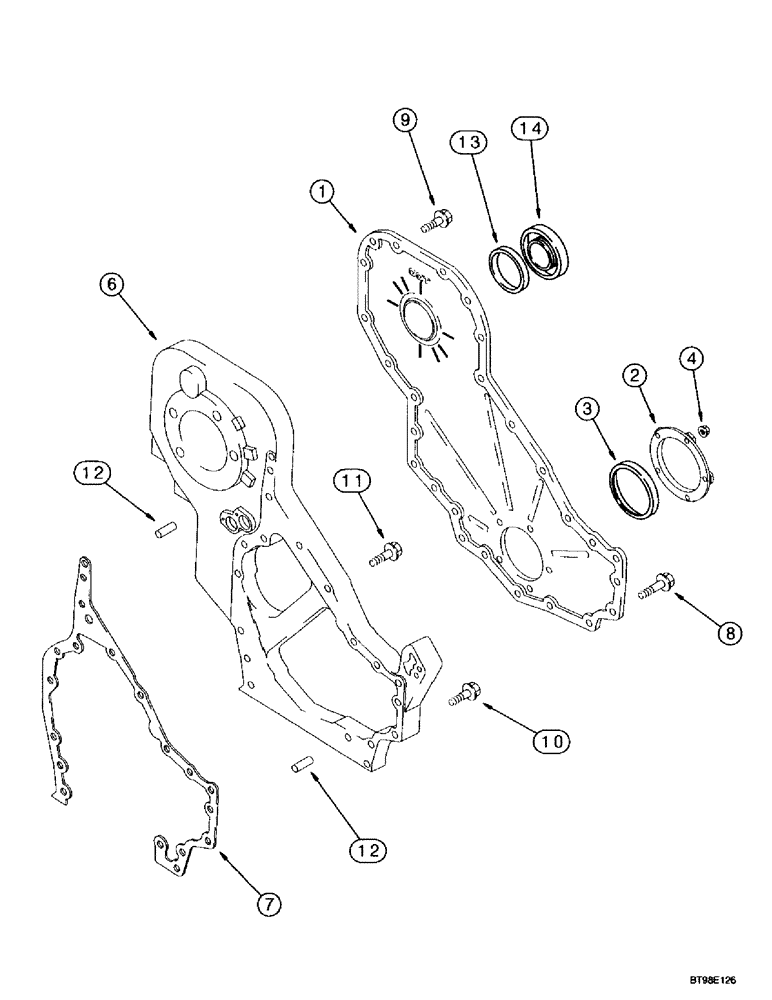

Запчасти Case IH MX240 (2-028) - FRONT GEAR COVER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J943816

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, order: A77790, J353978, see Figure 2-126

1шт.

4

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

5шт.

5

J823494

SEALANT

3 oz., not illustrated

1шт.

6

J942515

HOUSING

1шт.

7

J944293

GASKET,1.01mm Thk

housing

1шт.

8

J926863

FLANGE BOLT

flange, M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

12шт.

10

J926846

FLANGE BOLT

flange, M8 x 20

3шт.

11

J943885

BOLT

flange, M8 x 40

4шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J903463

PLUG,M63 x 5

1шт.
