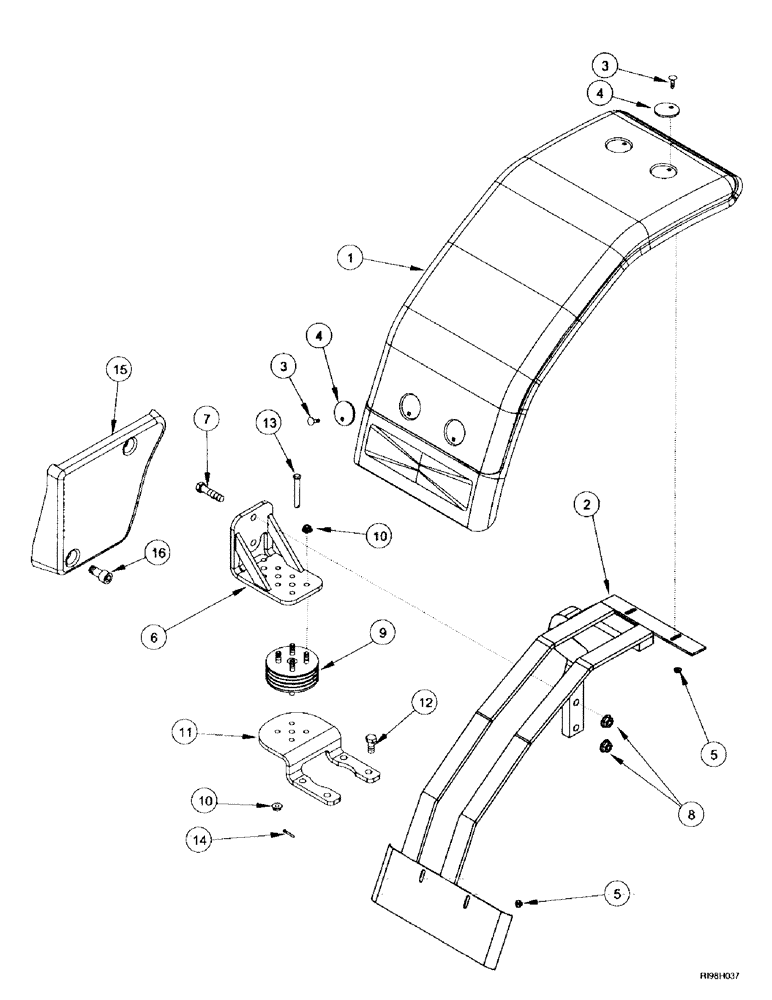

Запчасти Case IH MX240 (9-014) - FENDERS, FRONT, NARROW (09) - CHASSIS/ATTACHMENTS

301436A

KIT

attachment, order from machinery price list, consists of: Ref. 1 - 16

1шт.

1

1340664C1

FENDER

narrow

2шт.

2

244759A2

SUPPORT ASSY.

BRACE, right-hand shown

1шт.

2

244760A2

SUPPORT ASSY.

BRACE, left-hand

1шт.

3

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

8шт.

4

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

2-1/2

8шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

6

257560A2

SUPPORT

2шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

8

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

9

226690A2

RUBBER BUMPER

ISOLATOR

2шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

flange, M12

16шт.

11

254231A2

SUPPORT

BRACKET

2шт.

12

614-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

8шт.

13

439-5860

HEADED PIN,1/2" x 3 3/4"

clevis, 1/2 x 3-3/4 in.

2шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

253850A1

BUMPER

right-hand shown

1шт.

15

255685A1

BUMPER

left-hand

1шт.

16

565-111

SCREW,M20 x 40mm, Cl 8.8

BOLT socket, M20 x 40

4шт.
