(9-012) - FRONT WEIGHTS

Запчасти Case IH MX240 (9-012) - FRONT WEIGHTS (09) - CHASSIS/ATTACHMENTS

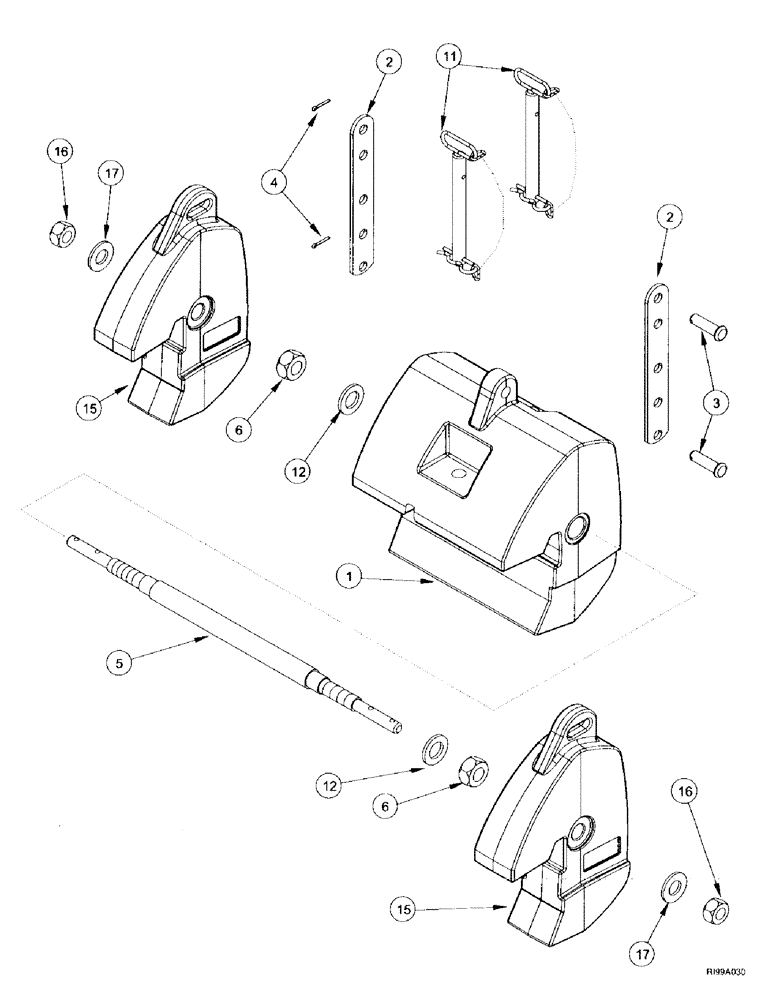

Схема запчастей Case IH MX240 - (9-012) - FRONT WEIGHTS (09) - CHASSIS/ATTACHMENTS
16
3
6
12
15
17
17
2
1
2
6
4
5
15
11
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

308768A

KIT

attachment, 1000 lb., order from machinery price list, consists of: Ref. 1 - 12

1шт.

308772A

KIT

attachment, 1500 lb., order from machinery price list, consists of: Ref. 1 - 17

1шт.

1

336142A1

WEIGHT

1000 lb., order from machinery price list

1шт.

2

336144A1

SUPPORT

BRACKET

2шт.

3

810751C1

PIN

clevis, 1 x 3-1/2 in.

2шт.

4

733-6340

COTTER PIN,M6.3 x 40

2шт.

5

336145A1

MOUNTING ROD

1шт.

6

825-1042

NUT,M42, Cl 8

2шт.

11

297750A1

PIN

1шт.

12

896-11042

WASHER,45mm ID x 78mm OD x 8mm Thk

45 x 78 x 8 mm

2шт.

15

336143A1

WEIGHT

250 lb., order from machinery price list

2шт.

16

829-1336

NUT,M36 x 4, Cl 10

M36

2шт.

17

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

39 x 78 x 7 mm

2шт.
