(9-008) - FRONT WEIGHTS, EUROPE ONLY

Запчасти Case IH MX240 (9-008) - FRONT WEIGHTS, EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

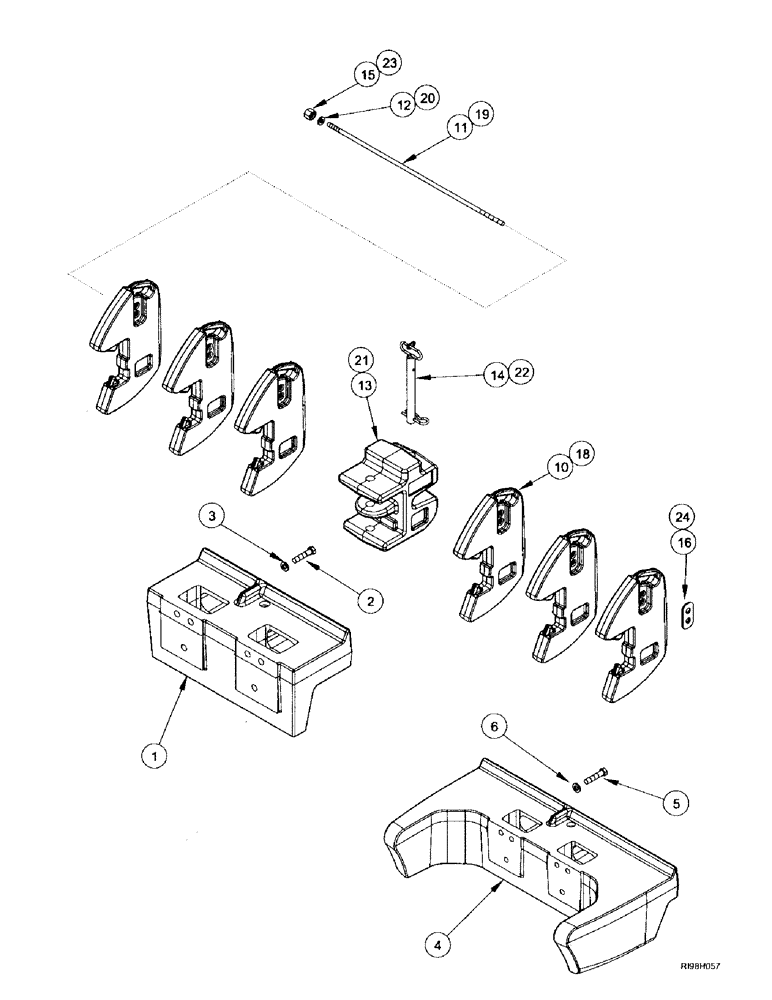

Схема запчастей Case IH MX240 - (9-008) - FRONT WEIGHTS, EUROPE ONLY (09) - CHASSIS/ATTACHMENTS
23
20
1
4
5
12
22
2
13
15
6
10
24
18
21
3
16
19
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

308738A

KIT

attachment, order from machinery price list, consists of: Ref. 1 - 3

1шт.

1

257326A2

SUPPORT

FRAME small

1шт.

2

258504A1

BOLT

BOLT, M20 x 90; 10.9

6шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

308735A

KIT

attachment, order from machinery price list, consists of: Ref. 4 - 6

1шт.

4

238518A2

SUPPORT

FRAME large

1шт.

5

258504A1

BOLT

BOLT, M20 x 90; 10.9

6шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

308742A

KIT

attachment, 800 lb., order from machinery price list, consists of: Ref. 10 - 16

1шт.

10

405846A3

WEIGHT

100 lb.

6шт.

11

324475A1

TRUSS ROD

600mm

1шт.

12

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm

1шт.

13

324472A2

CLEVIS

1шт.

14

297750A1

PIN

1шт.

15

829-1416

NUT,M16, Cl 10

1шт.

16

229483A1

RETAINER

1шт.

308743A

KIT

attachment, 1600 lb., order from machinery price list, consists of: Ref. 18 - 24

1шт.

18

224383A2

WEIGHT

100 lb., order from machinery price list

14шт.

19

324474A1

TRUSS ROD

1070mm

1шт.

20

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm

1шт.

21

324472A2

CLEVIS

1шт.

22

297750A1

PIN

1шт.

23

829-1416

NUT,M16, Cl 10

1шт.

24

229483A1

RETAINER

1шт.
