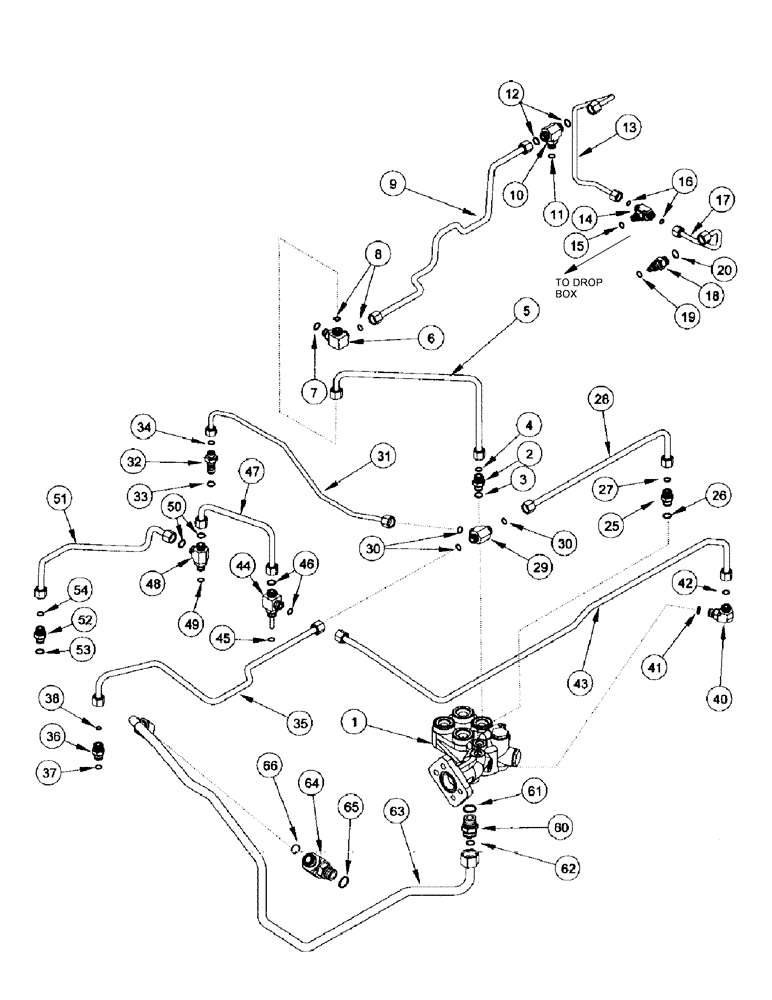

Запчасти Case IH MX240 (8-022) - HYDRAULIC SYSTEM, TRANSMISSION LUBE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HEAD filter, see Figures 8-008, 8-012
1шт.
2
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 3, 4
1шт.
3
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
5
298798A1
TUBE,0.5" OD, 324, 212 mm Length
TUBE
1шт.
6
279161A1
TEE
13/16 fc sl x 18 Or, Includes: Ref. 7, 8
1шт.
7
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
9
299169A1
TUBE
TUBE
1шт.
10
700-402
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
13/16 fc sl x 18 Or, Includes: Ref. 11, 12
1шт.
10 Dec 1998, Author: Tom A. Sprasky. 800-800-41. 700-402 is being changed to a special screen tee. If dealer says the fitting has a screen, supply 330909A1--fitting has a 95 Micron screen.
1шт.
11
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
13
282275A1
TUBE,0.375" OD, 307, 96 mm Length
TUBE, without creep speed
1шт.
13
REF
INSTRUCTION
TUBE, with creep speed, see Figure 8-020
1шт.
14
700-401
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
11/16 fc sl x 14 Or, Includes: Ref. 15, 16
1шт.
15
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
16
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
17
282278A1
HYD TUBE,0.375" OD, 120, 50 mm Length
TUBE
1шт.
18
93105C1
UNION
1шт.
19
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
25
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 26, 27
1шт.
26
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
28
308372A1
HYD TUBE,0.5" OD, 443, 90 mm Length
TUBE
1шт.
29
701-409
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS
13/16 fc sl, Includes: Ref. 30
1шт.
31
303728A2
TUBE,0.375" OD, 523, 55 mm Length
TUBE
1шт.
32
308181A1
FITTING
ADAPTER, 11/16 fc sl x 3/4 Or
1шт.
33
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
34
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
35
296727A1
TUBE,0.5" OD, 577, 175 mm Length
TUBE
1шт.
36
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 37, 38
1шт.
37
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
40
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 41, 42
1шт.
41
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
43
298261A1
TUBE
TUBE
1шт.
44
279781A1
TEE
13/16 fc sl x 18 Or, Includes: Ref. 45, 46
1шт.
45
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
47
276527A1
TUBE,0.5" OD, 183, 114 mm Length
TUBE
1шт.
48
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Includes: Ref. 49, 50
1шт.
49
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
51
296728A1
TUBE
TUBE
1шт.
52
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 53, 54
1шт.
53
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
60
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. Ref. 61, 62
1шт.
61
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
62
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
63
303708A2
TUBE
TUBE
1шт.
64
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 65, 66
1шт.
65
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
66
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
Выбрано товаров: 58
