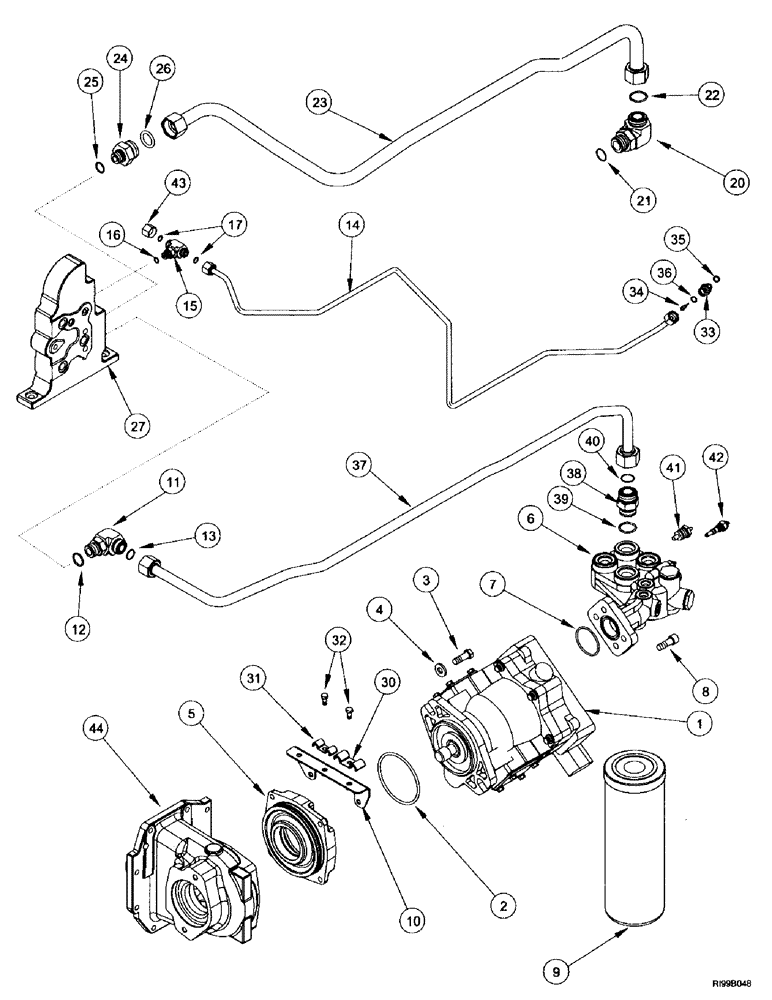

Запчасти Case IH MX240 (8-008) - HYDRAULIC SYSTEM, PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY PUMP (08) - HYDRAULICS

1

278069A1

PUMP, HYDRAULIC

ASSY, see Figure 8-044, 30 gpm

1шт.

278069A2R

REMAN-HYD PUMP

MX180, MX200, MX220, MX240, MX270, All Before P.I.N. JJA0105000, Reman For New P/N 278069A1 & 278069A2

1шт.

278069A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

3

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

5

REF

INSTRUCTION

CAGE, see Figure 6-110

1шт.

6

300620A1

HEAD ASSY.

filter

1шт.

7

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

8

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT flange, M12 x 35; 12.9

4шт.

9

277311A1

HYDRAULIC OIL FILTER

1шт.

10

299415A1

SUPPORT

BRACKET

1шт.

11

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 12, 13

1шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

304039A1

TUBE,0.375" OD, 966, 486 mm Length

TUBE, without hydraulic brakes

1шт.

Per tech, the tube is 304039A1. It is poorly illustrated in the catalog. This tube is to be replaced (because of repeated failures) by 310612A2, which is a hose. This is all per a conversation with the engineer. CAM/CNS 7/2/99

1шт.

15

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

11/16 fc sl x 14 Or, Includes: Ref. 16, 17

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

413993A1

90 ELBOW

1-7/16 fc sl x 33 Or, 90 deg., forged fitting, Replaces: 700-308, Includes: Ref. 21, 22

1шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

23

275273A3

TUBE

TUBE, without hydraulic brakes

1шт.

24

700-159

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 25, 26

1шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

REF

INSTRUCTION

MANIFOLD, see Figure 8-068

1шт.

30

299430A1

CLAMP

1/2 in.

1шт.

31

299431A1

CLAMP

3/8 in.

1шт.

32

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

334922A1

ADAPTER

ASSY, 11/16 fc sl x 12 Or, consists of: Ref. 33 - 36

1шт.

33

334924A1

FITTING

ADAPTER, 11/16 fc sl x 12 Or

1шт.

34

NSS

NOT SOLD SEPARAT

SCREEN

1шт.

35

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

275270A2

TUBE

TUBE

1шт.

38

283024A1

VALVE POPPET

ADAPTER, check, 1-7/16 fc sl x 33 Or, Includes: Ref. 39, 40

1шт.

39

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

41

A176566

TRANSMITTER

SENDER temperature transmission

1шт.

42

1957801C1

PRESSURE SWITCH

Restriction

1шт.

43

701-900

CAP,11/16" - 16

CAP, 11/16 in.

1шт.

44

REF

INSTRUCTION

HOUSING, see Figure 6-110

1шт.
