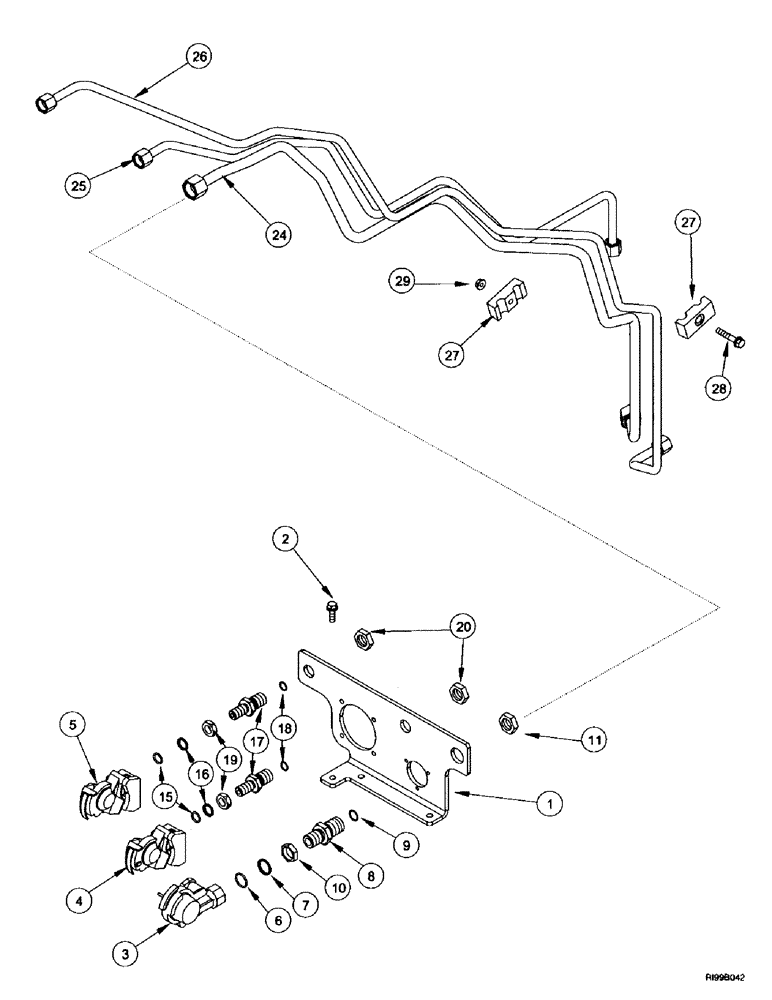

Запчасти Case IH MX240 (7-042) - TRAILER BRAKE, PNEUMATIC, COUPLING, EUROPE ONLY (07) - BRAKES

1

294033A2

SUPPORT

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

3

3141447R1

BREAKER POINTS

1шт.

4

4304140R91

BREAKER POINTS

1шт.

5

3401424R1

COUPLING

1шт.

6

3076154R1

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

1шт.

7

3076153R1

RING

seal

1шт.

8

258695A2

FITTING

ADAPTER, Includes: Ref. 9

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

933882R1

NUT

M22

1шт.

11

701-919

BHD LOCK NUT,1" - 14

1шт.

15

3148863R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

16

3148862R1

O-RING,16.1mm ID x 22mm OD x 2.6mm Thk

seal

2шт.

17

258696A2

FITTING

ADAPTER, Includes: Ref. 18

2шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

829-23416

THIN NUT,Thin, M16 x 1.5, Cl 05

M16

2шт.

20

701-903

NUT,13/16" - 16

2шт.

24

258729A2

TUBE,0.625" OD, 766, 733 mm Length

TUBE

1шт.

25

258730A2

TUBE,0.5" OD, 738, 390 mm Length

TUBE

1шт.

26

258731A3

TUBE

TUBE

1шт.

27

109619A1

CLAMP

CLAMP

1шт.

28

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
